Anders P. Hellberg
A strategic designer working in Asia and Europe for more than 20 years, his work is unique. Combining creativity and innovation, the product is sustainable, earning him numerous product design awards.
World-class design Ecosilent Drive System Technology
Since the 1970s, Cibes Lift has been using screw technology, which has not only been tested and met safety standards in Europe. It is also a safety standard in other regions around the

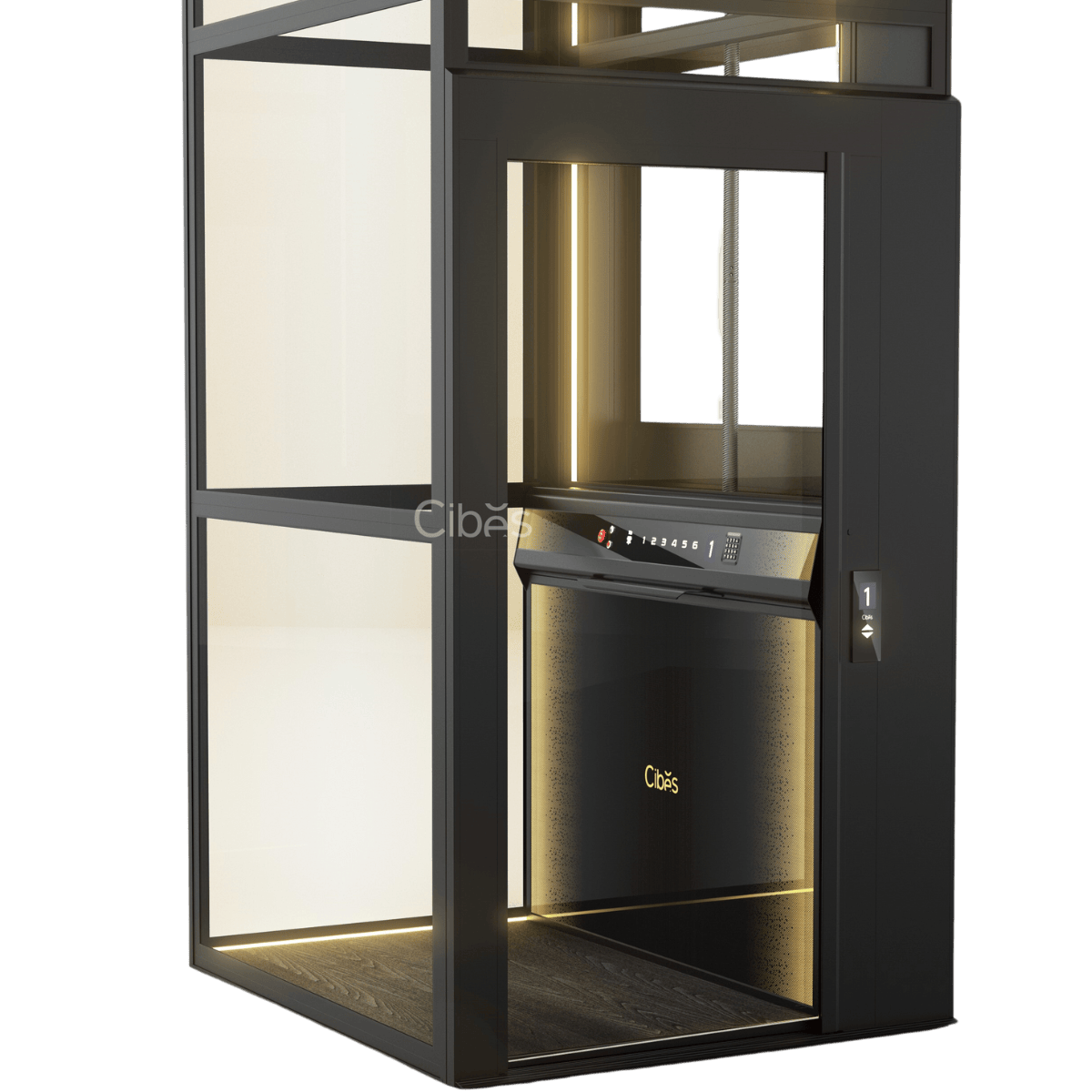

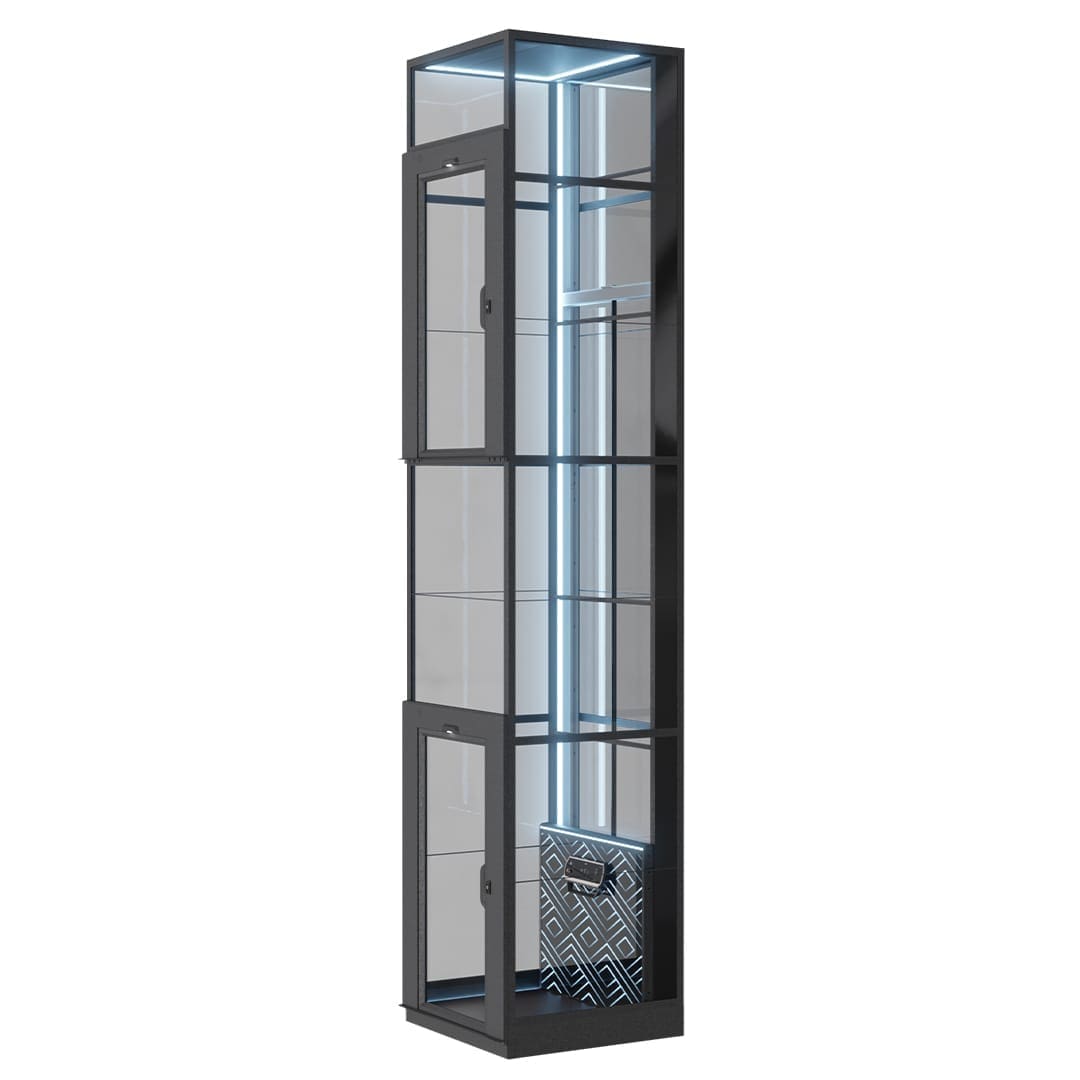

Cibes V80 GALAXY
A pattern on the control panel with luxury RGBW LiT LED lighting.
Cibes V80 GALAXY | Luxury Design
Complete the flatness and elegance to experience a new experience in using platform lifts.
Ecosilent2.0 technology, it helps to make the lift work energy-saving. It uses little lubricating oil and only operates quietly at 40dB. For this model, it is a swing door for comfortable entry and exit.
A HOME LIFT FULL OF LUXURY
• Cibes Lift’s V80 home lift is one of the most modern and safest platform lifts.
• Each home lift is designed to meet your needs, both in design and in terms of the size of the lift itself.
• The smallest lift It takes up only 1 square meter and there are also 41 lift sizes to choose from.
Lifts are designed to blend in with your home’s interior design.
• Powder coat for both ordinary and special touch surfaces with sand.
Cibes Lift | Smart Home Lift
Cibes Lifts are equipped with advanced control systems and intelligent control systems to provide you with the convenience of every use. In addition to services, various functions include lift locks, music sound systems, and contact systems. Installed from the factory of manufacture, with early notifications such as alerts when the battery is degraded, and software upgrades are possible.

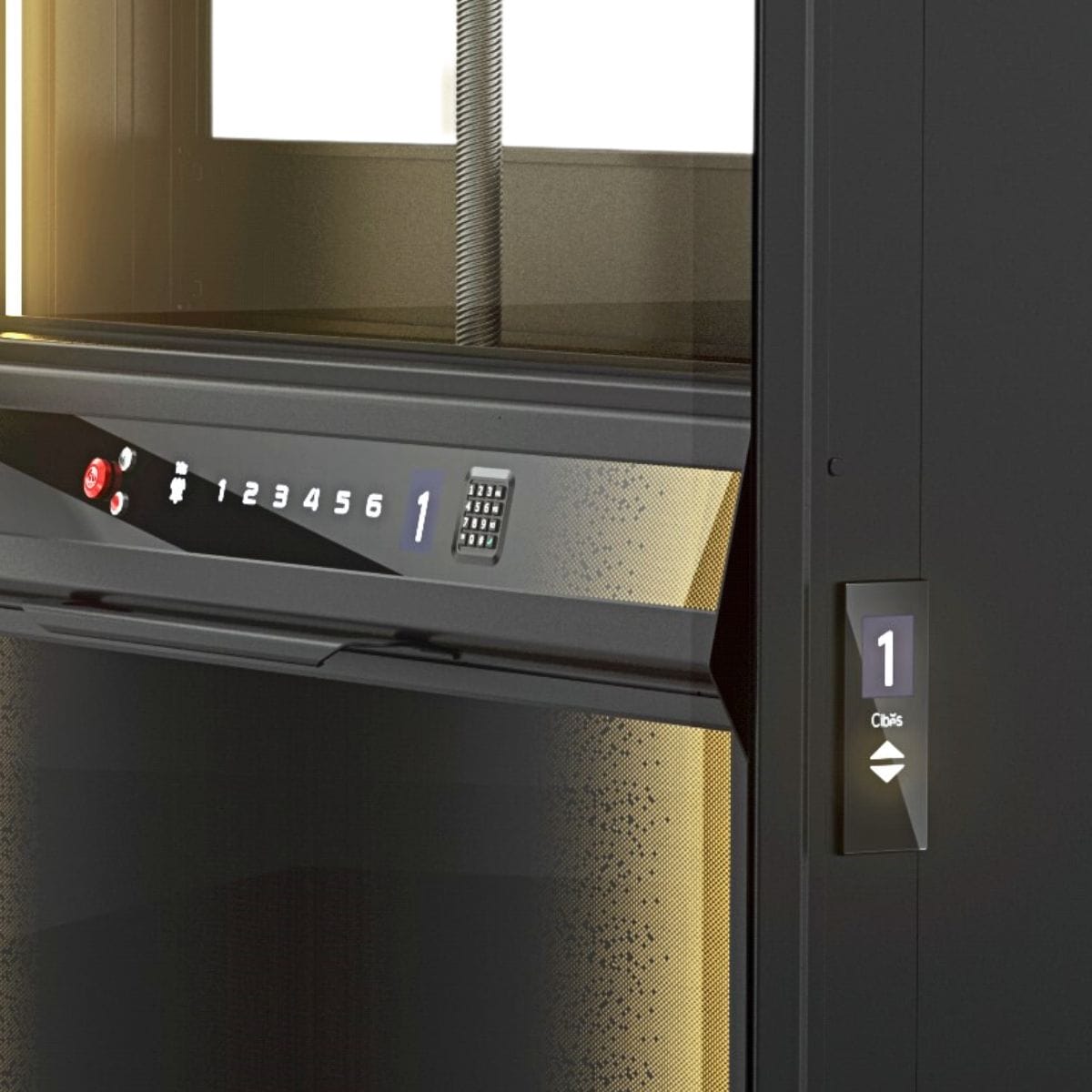

Lift call button with touch screen
The lift call button is designed to be modern with touch and modern functionality. It can clearly tell the number of the current class.
Panoramic View 360-degree Full Safety Glass
Cibes lift is designed as a panoramic 360-degree all-round glass chimney that can be installed both inside and outside the building.
Beautifully transforms RGBW LiT LED backlighting
RGBW LED laser light effects, high-tech effects on the control panel and services (fixed or color-changing LED colors).
Cibes Child Lock
Another optional function to prevent children from playing the lift to increase safety in extreme use.
Eco Silent Screw-Driver Version 2.0
Ecosilent 2.0 takes you to the next level of safety and quietness in use. Guide roller that has been developed to be strong and reduce friction with the lift. Make your journey smoother. The load sensor has been improved to be more accurate and safer.
Less space but more space
The Cibes lift is equipped with a structure and lift shaft, without the need for a separate engine room and no weights, so that the space where the lift is installed can be used to the fullest. It can be installed in the middle of the stairs, in any corner of the house. In the existing chimney, or if there is no space in the house, it can be installed outside the house. The smallest lift It takes up only 1 square meter. There are 41 lift sizes to choose from.

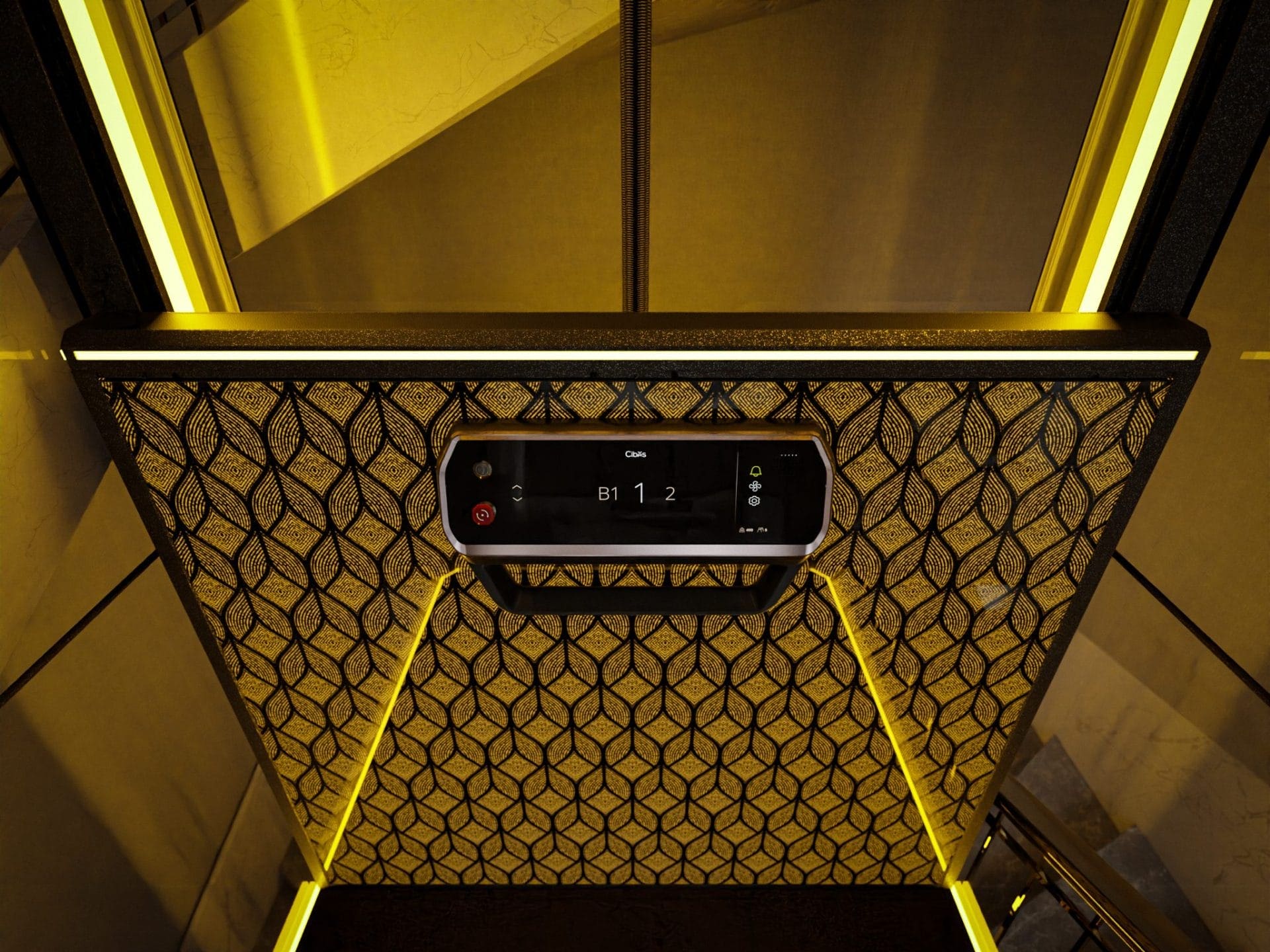

Premium Control Panels (Touch Screen)
Our premium luxury touch panel features a larger screen, a beautiful silver bezel design, and additional functions to control ambient lighting and music playback. Increase luxury, have infinite levels.
Premium Control Panels
LIGHT CONTROL
The control panel lights inside the lift can be adjusted freely!
VENTILATION
LIFT OPERATION
STATUS SETTING &
WARNING MESSAGE
CHILD LOCK
CUSTOME MUSIC
Get information about your lift, such as the next maintenance day and the distance traveled!
Set up Enable or disable child locks for your lift with a special PIN.
The numbers will move and change size as your lift moves from floor to floor.
Turn on/off, or adjust the fan intensity directly on the control panel
Operate your lift in style by listening to music from the pre-loaded curated music in your lift
Your lift can also be customized as appropriate. Whether it is the size of the lift. Layout of the cabin Lift installation points or door opening directions so that the lift and your home blend perfectly, a lift that is installed perfectly inside the house promotes your home to be unique and expresses the identity of the homeowner.
CIBES FLOORING SELECTIONS
The floor of a Cibes Lift is completely PVC-free and contains no harmful substances. Made from up to 98% natural raw materials, of which 70% are rapidly renewable, it stands as a truly natural and high-quality product. Environmentally friendly from start to finish, it requires no offsetting to achieve sustainability.
At Cibes Lift, we are fully committed to closing the loop. Our flooring meets the rigorous CDPH standard for interior materials and has been carefully selected to ensure the highest environmental and health standards. We use certified linoleum flooring, endorsed by the British Allergy Foundation as hypoallergenic — making it not only a sustainable choice, but a healthier one for your home.
TECHNICAL SPECIFICATIONS
| Installation | Indoor / Outdoor |
| Rate Load | 400kg |
| Power Supply | 1 x 220V, 3 x 380V |
| Speed | 0.15 m/s |
| Pit Depth | 50-70mm / 0mm optional with ramp |
| Motor Power | 3kW |
| Maximum Stops | 6 |
| Maximum Travel | 20m |
| Drive | Screw-Driven System (Ecosilent2.0) |
| Machine Room | Machine Roomless (MRL) |
| PLATFORM SIZE | ||||||
| PLATFORM SIZE | Shaft Size (in mm) | Cut Out Size (in mm) | ||||
| A/C Side | B/D Side | A/C Side | B/D Side | A/C Side | B/D Side | |
| 1 | 635 | 850 | 1000 | 900 | 1070 | 940 |
| 2 | 735 | 850 | 1100 | 900 | 1170 | 940 |
| 3 | 835 | 850 | 1200 | 900 | 1270 | 940 |
| 4 | 935 | 850 | 1300 | 900 | 1370 | 940 |
| 5 | 1035 | 850 | 1400 | 900 | 1470 | 940 |
| 6 | 1135 | 850 | 1500 | 900 | 1570 | 940 |
| 7 | 635 | 950 | 1000 | 1000 | 1070 | 1040 |
| 8 | 735 | 950 | 1100 | 1000 | 1170 | 1040 |
| 9 | 835 | 950 | 1200 | 1000 | 1270 | 1040 |
| 10 | 935 | 950 | 1300 | 1000 | 1370 | 1040 |
| 11 | 1035 | 950 | 1400 | 1000 | 1470 | 1040 |
| 12 | 1135 | 950 | 1500 | 1000 | 1570 | 1040 |
| 13 | 635 | 1050 | 1000 | 1100 | 1070 | 1140 |
| 14 | 735 | 1050 | 1100 | 1100 | 1170 | 1140 |
| 15 | 835 | 1050 | 1200 | 1100 | 1270 | 1140 |
| 16 | 935 | 1050 | 1300 | 1100 | 1370 | 1140 |
| 17 | 1035 | 1050 | 1400 | 1100 | 1470 | 1140 |
| 18 | 1135 | 1050 | 1500 | 1100 | 1570 | 1140 |
| 19 | 635 | 1150 | 1000 | 1200 | 1070 | 1240 |
| 20 | 735 | 1150 | 1100 | 1200 | 1170 | 1240 |
| 21 | 835 | 1150 | 1200 | 1200 | 1270 | 1240 |
| 22 | 935 | 1150 | 1300 | 1200 | 1370 | 1240 |
| 23 | 1035 | 1150 | 1400 | 1200 | 1470 | 1240 |
| 24 | 1135 | 1150 | 1500 | 1200 | 1570 | 1240 |
| 25 | 635 | 1250 | 1000 | 1300 | 1070 | 1340 |
| 26 | 735 | 1250 | 1100 | 1300 | 1170 | 1340 |
| 27 | 835 | 1250 | 1200 | 1300 | 1270 | 1340 |
| 28 | 935 | 1250 | 1300 | 1300 | 1370 | 1340 |
| 29 | 1035 | 1250 | 1400 | 1300 | 1470 | 1340 |
| 30 | 1135 | 1250 | 1500 | 1300 | 1570 | 1340 |
| 31 | 635 | 1350 | 1000 | 1400 | 1070 | 1440 |
| 32 | 735 | 1350 | 1100 | 1400 | 1170 | 1440 |
| 33 | 835 | 1350 | 1200 | 1400 | 1270 | 1440 |
| 34 | 935 | 1350 | 1300 | 1400 | 1370 | 1440 |
| 35 | 1035 | 1350 | 1400 | 1400 | 1470 | 1440 |
| 36 | 1135 | 1350 | 1500 | 1400 | 1570 | 1440 |
| 37 | 635 | 1450 | 1000 | 1500 | 1070 | 1540 |
| 38 | 735 | 1450 | 1100 | 1500 | 1170 | 1540 |
| 39 | 835 | 1450 | 1200 | 1500 | 1270 | 1540 |
| 40 | 935 | 1450 | 1300 | 1500 | 1370 | 1540 |
| 41 | 1035 | 1450 | 1400 | 1500 | 1470 | 1540 |
เราอยากให้คุณเพลิดเพลินกับความสะดวกสบายของลิฟต์ได้ตลอดวันและตลอดคืน โดยไม่ต้องปลุกคนในครอบครัวของคุณให้ตื่นเลย เพื่อมอบการเดินทางที่ราบรื่นและเงียบสงบให้กับคุณและคนที่คุณรัก เราจึงได้รับแรงบันดาลใจจากความเงียบสงบของธรรมชาติในสวีเดน ผลลัพธ์ที่ได้คือแทบจะไม่มีเสียงเลย

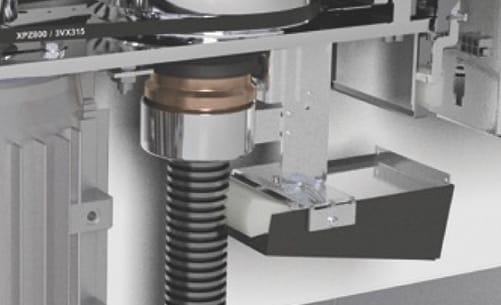

New Generation Ecosilent
Lifting Screw
สกรูยกมีระยะพิทช์สูงขึ้น 3 เท่า (36 มม.) และข้อต่อสกรูใหม่มีความเรียบเนียนมากจนคุณแทบจะไม่สังเกตเห็นระหว่างการยก
Safety, Silent, Energy-efficient
Energy Label A
Drive unit
Guide Rollers
SilentBox
Permanent Magnet Synchronous Motor
Silent Sound
มอเตอร์ซิงโครนัสแม่เหล็กถาวร (Permanent Magnet Synchronous Motor : PMSM) หรือ มอเตอร์ซิงโครนัสชนิดแม่เหล็กถาวร ถือเป็นมอเตอร์ที่มีประสิทธิภาพการทำงานสูงถึง 95% (Motor Efficiency) มอเตอร์ประเภทนี้เป็นมอเตอร์ไฟฟ้ากระแสสลับ สนามไฟฟ้าจะถูกกระตุ้นด้วยแม่เหล็กถาวร PMSM ทำให้ลิฟต์เงียบมาก
ลูกกลิ้งนำทางช่วยลดแรงเสียดทานลง 90% และไม่ต้องใช้การหล่อลื่น ทำให้การบำรุงรักษาสะดวกยิ่งขึ้น
ชุดไดรฟ์ถูกบรรจุอยู่ในตัวเรือนโลหะกันเสียงที่หรูหรา ซึ่งออกแบบมาเพื่อคลุมชุดไดรฟ์และกำจัดเสียงรบกวนความถี่สูง
ตัวเลขจะเคลื่อนและเปลี่ยนขนาดเมื่อลิฟต์ของคุณเคลื่อนจากชั้นหนึ่งไปอีกชั้นหนึ่ง
ลิฟต์ที่ติดตั้งระบบขับเคลื่อนอันล้ำสมัยของเราได้รับฉลาก Energy Label A และใช้พลังงานน้อยกว่าลิฟต์ที่ไม่มีฉลาก Energy Label A ถึง 45%
การใช้งานลิฟท์เงียบสงบ ไม่เกิน 40dB โดย Springwell Audio AB, member of the Swedish Acoustical Society, www.springwellaudio.se.
ISO 14001:2015
No. : 01 100 2132736
Certified to ISO 14001:2015 environmental management standards by TÜV Rheinland.
Certified to ISO 9001:2015 quality management standards by TÜV Rheinland.
Certified by Liftinstituut according to European Safety Standard EN81-41:2010, Machinery Directive 2006/42/EC, and EC-Type Examination.
Certified by Liftinstituut with Energy Label A for outstanding energy efficiency.
Certified noise test report for the Ecosilent Drive System by Springwell Audio AB.
