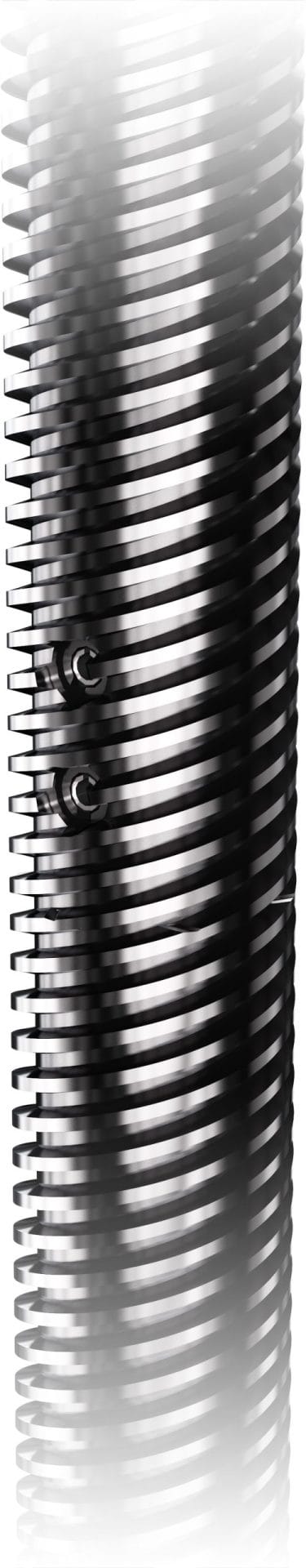

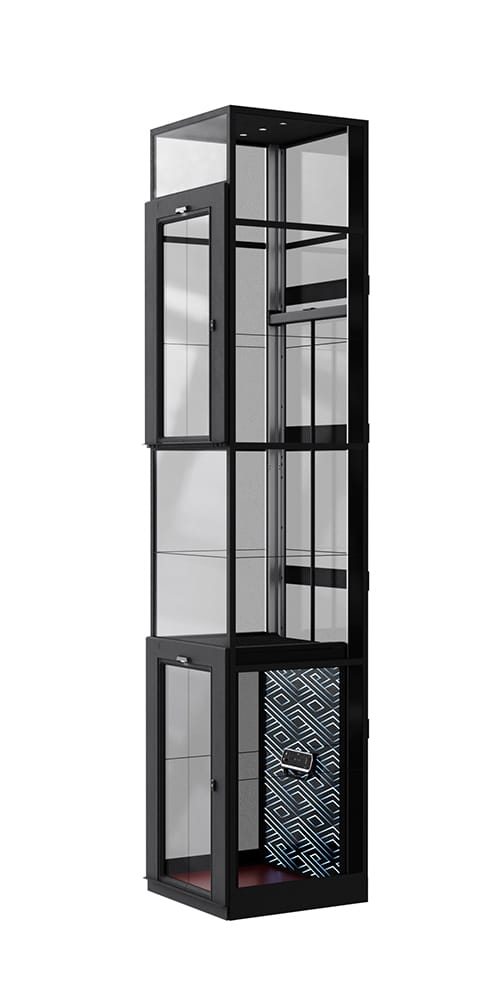

SPACE – SAVING TECHNOLOGY with SCREW – DRIVEN

Screw-driven home lifts are powered by the rotation of a nut on a screw, and come with their own shaft. Thanks to their driving principle and design, screw-driven  lifts do not require a pit, machine room or shaft. These features make them ideally suited for the home.

  • Ready-made panoramic shaft
  • No Pit required
  •  No machine room and low headroom
  • No leaky hydraulic oils
  • Glass on all sides for a 360 panoramic view
  • Super space-saving solution
  • Single or Three Phase
  • A-rated energy consumption
  • Easy and low-cost maintenance
  • High customization to fit your house

How can you save space for your customers?

Cibes Lift at ASA expo 2022

CIBES CABIN HOME LIFT TECHNICAL DETAILS

PRODUCT NAME Cibes V70 / V90
MAX # OF STOPS 8 Stops
MAX TRAVEL HEIGHT 20 m
POWER SUPPLY 1 phase 220V / 3 phase 220 V / 3 phase 400 V
MINIMUM HEIGHT TOP FLOOR 2500 mm
BOTTOM PIT REQUIREMENTS 100-120 mm / 0 mm optional with ramp
PRODUCT STANDARDS MD 2006/42/EC, EN81-41, certified by SIL3
DRIVE MODE Screw-Drive
RATED POWER 3 kW
MACHINE ROOM None (integrated solution)
DOOR OPENING DIRECTION Flexible choice for 3 sides
SAFETY DEVICE 360° catchment protection with light curtain.
Emergency Battery Lowering in case of power failure.
Overload alarm device. 2N phone-equipped emergency communication device.
Electronic and mechanical safety door protection system. Can be connected to fire alarm device.
SHAFT OPTION All Glass standard, 1000 mm panels
INSTALLATION LOCATION Indoor or outdoor
SPEED 0.15 m/s (0.25 m/s optional)

Voyager line up Sizes

How to read the Cibes Home Lift size chart

Need to know more on site prep? Contact us now!

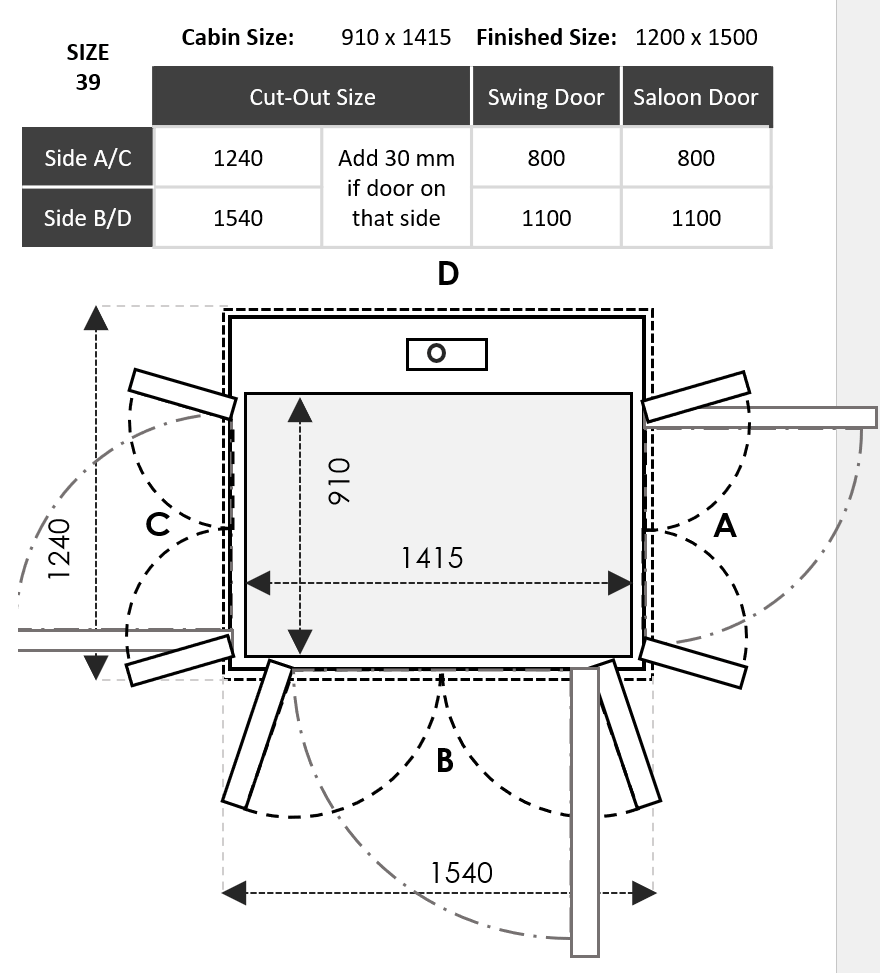

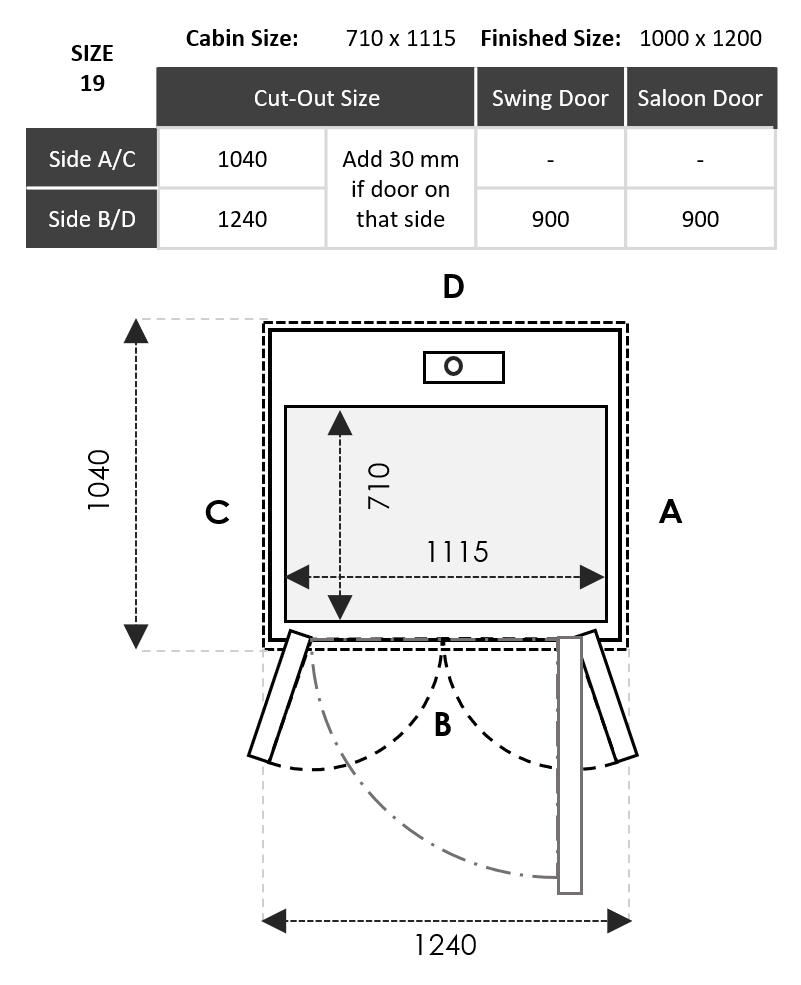

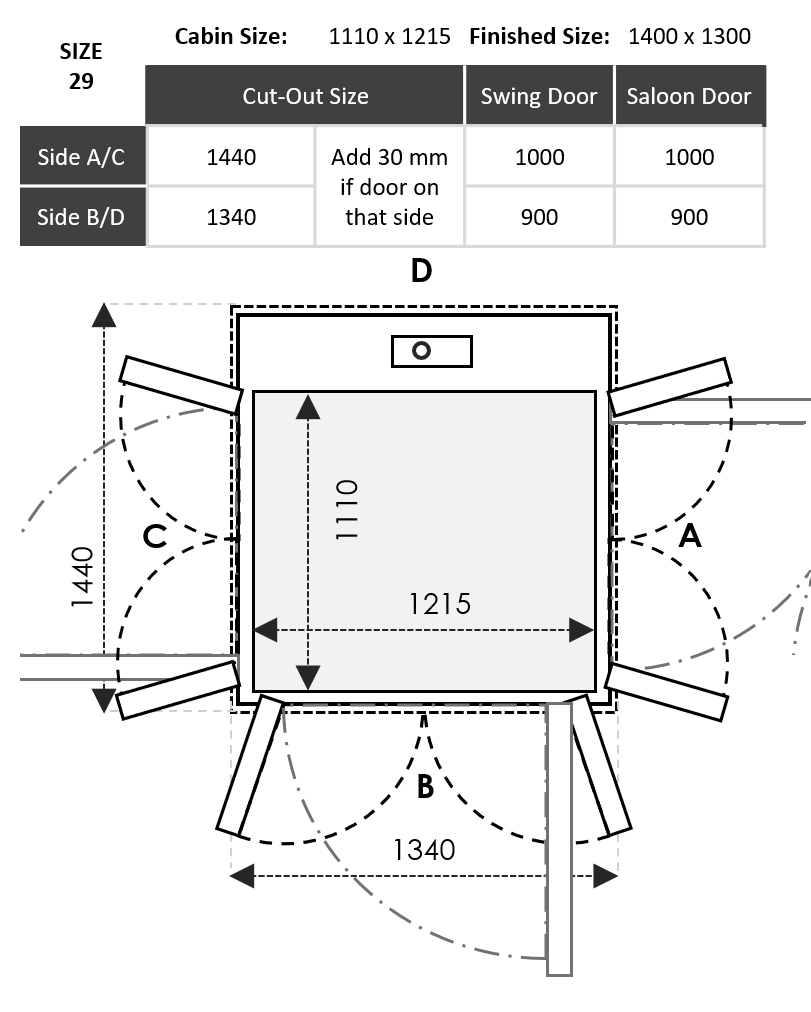

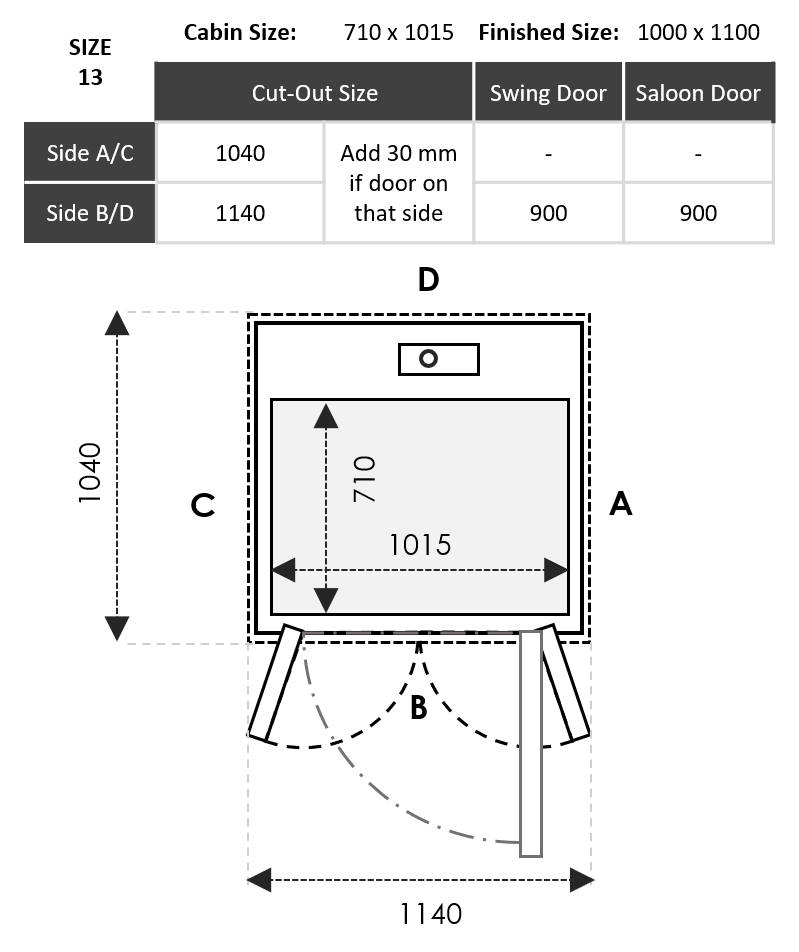

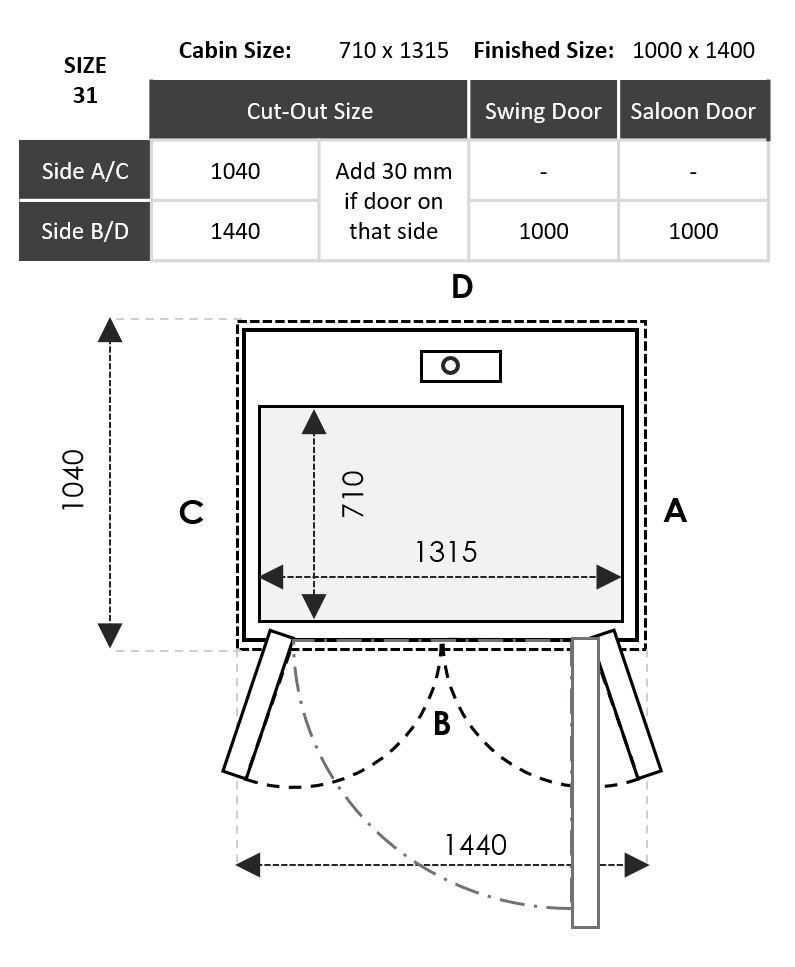

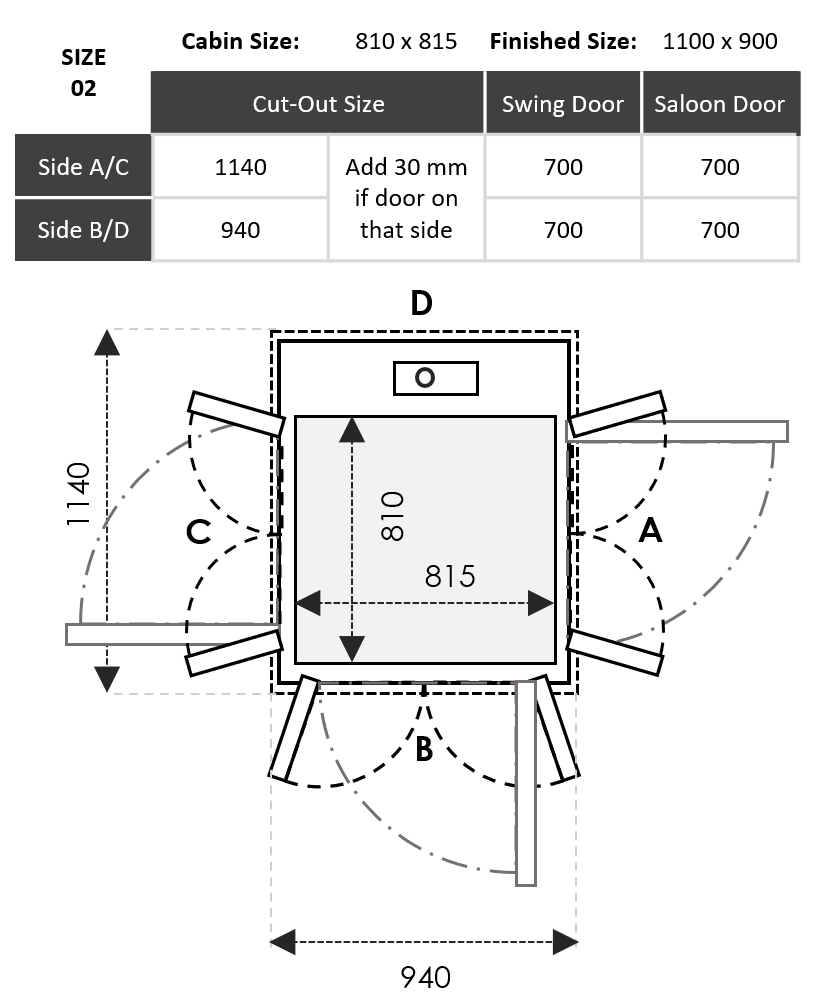

Download Now the 3D files of our V90 cabins for your floor plan integration!

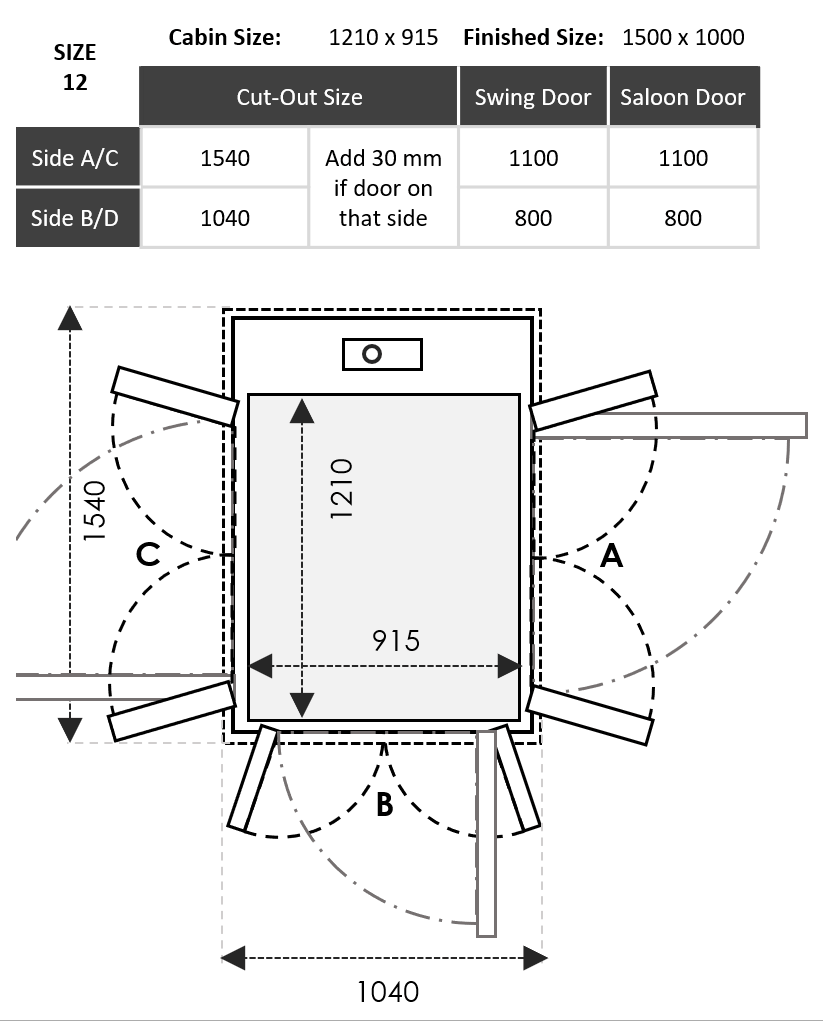

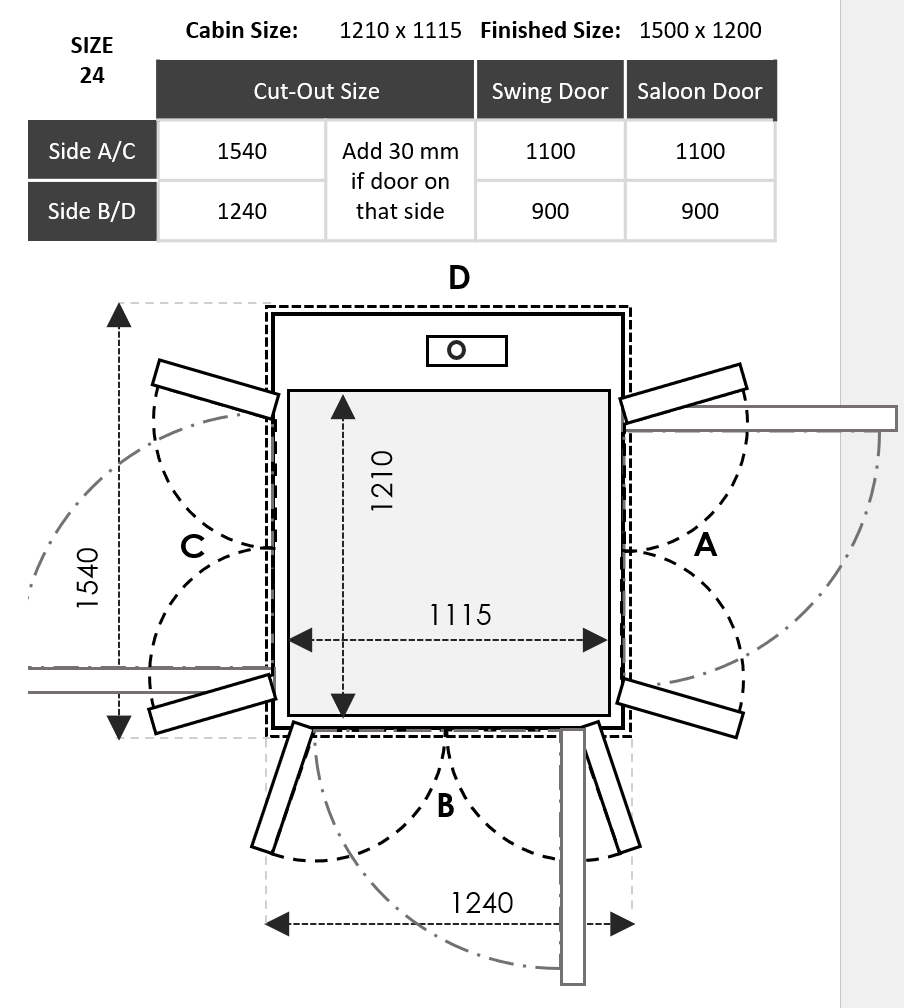

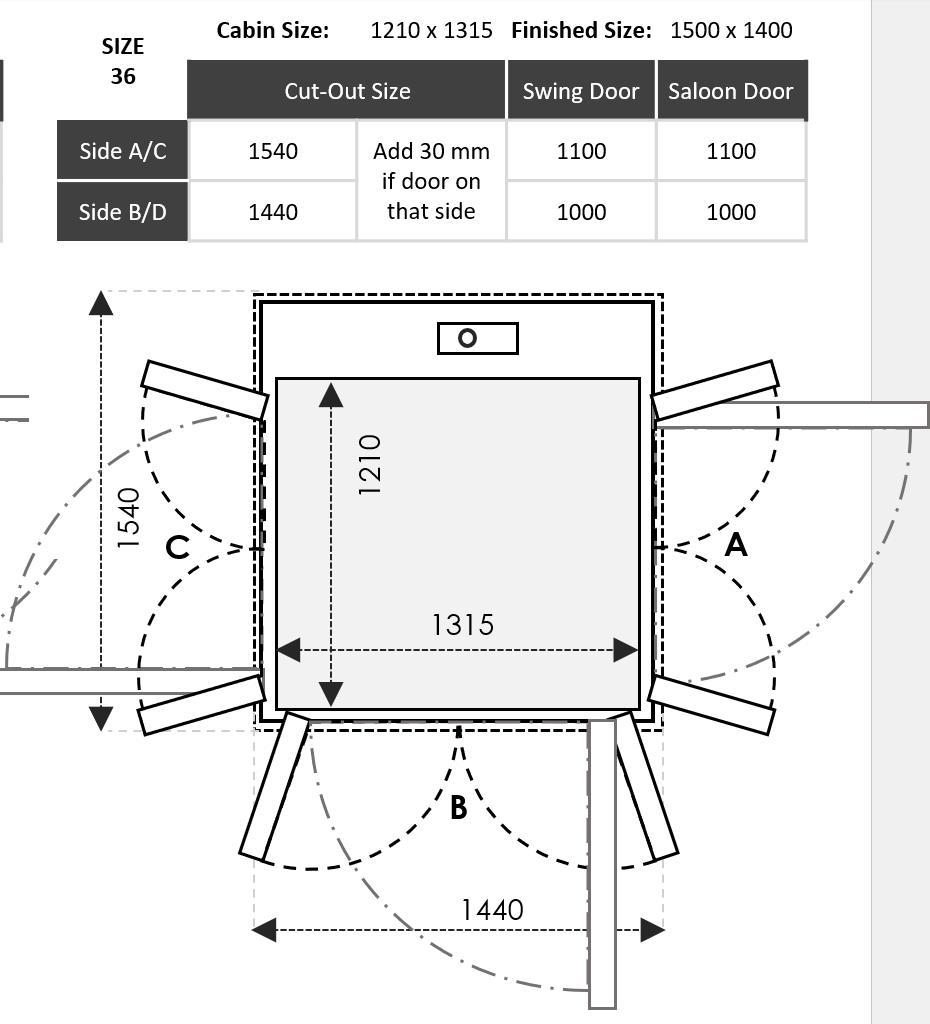

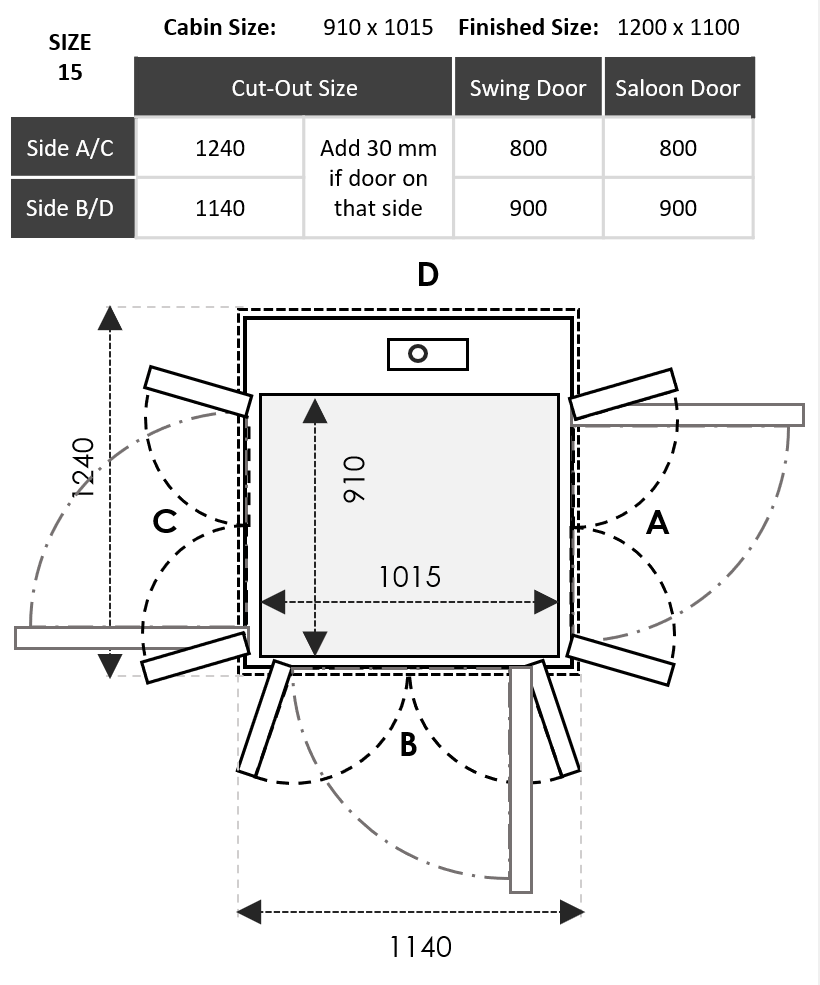

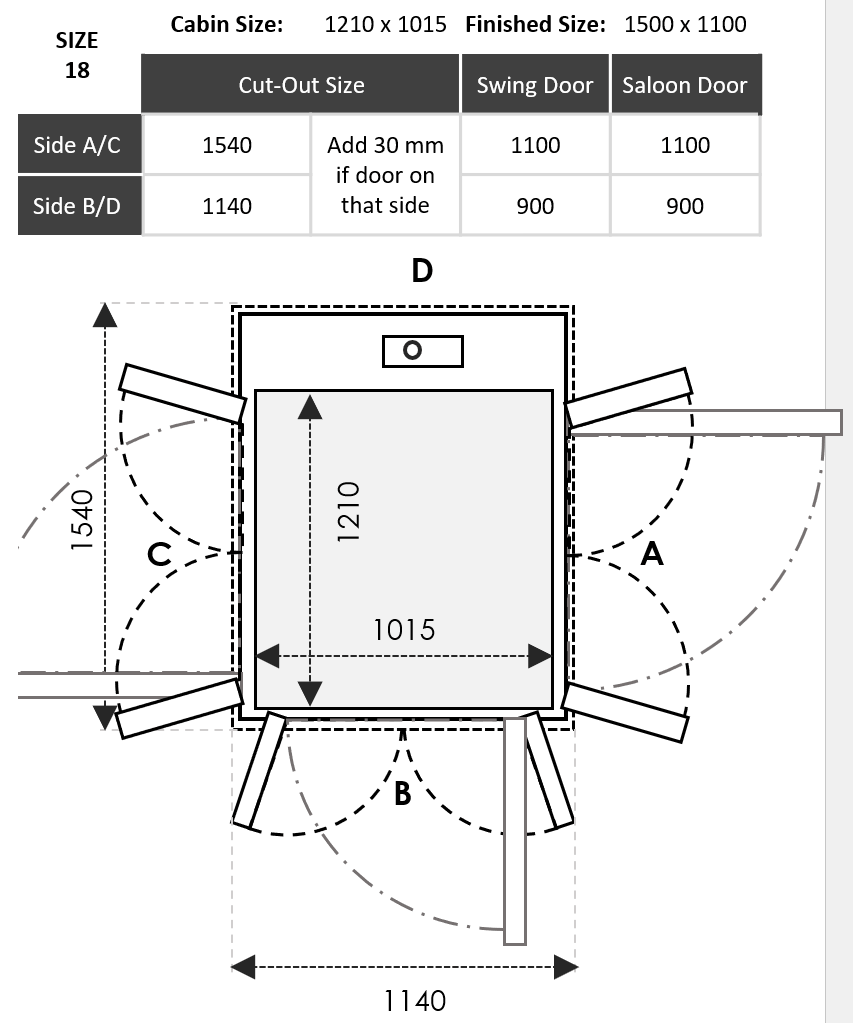

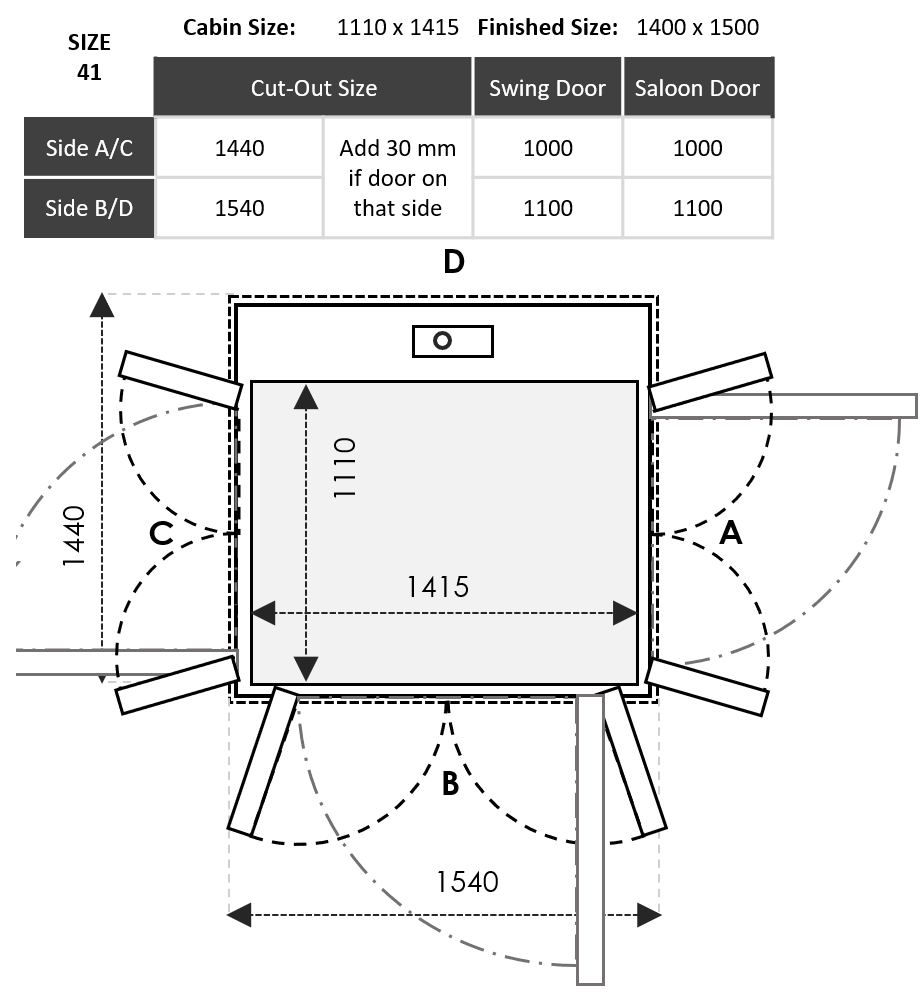

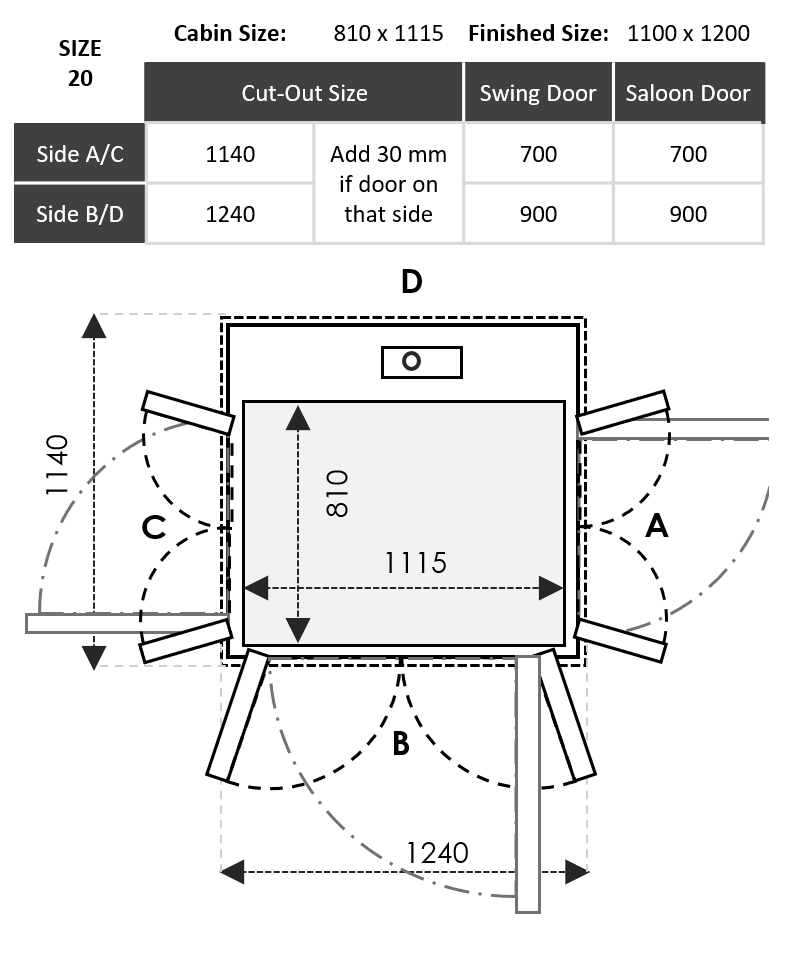

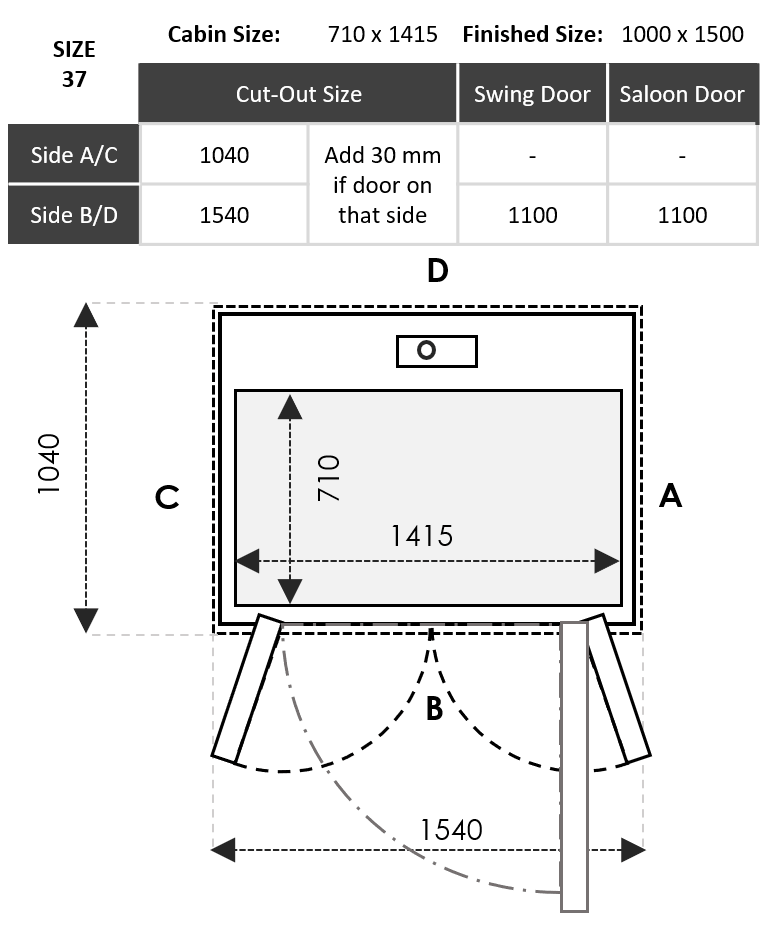

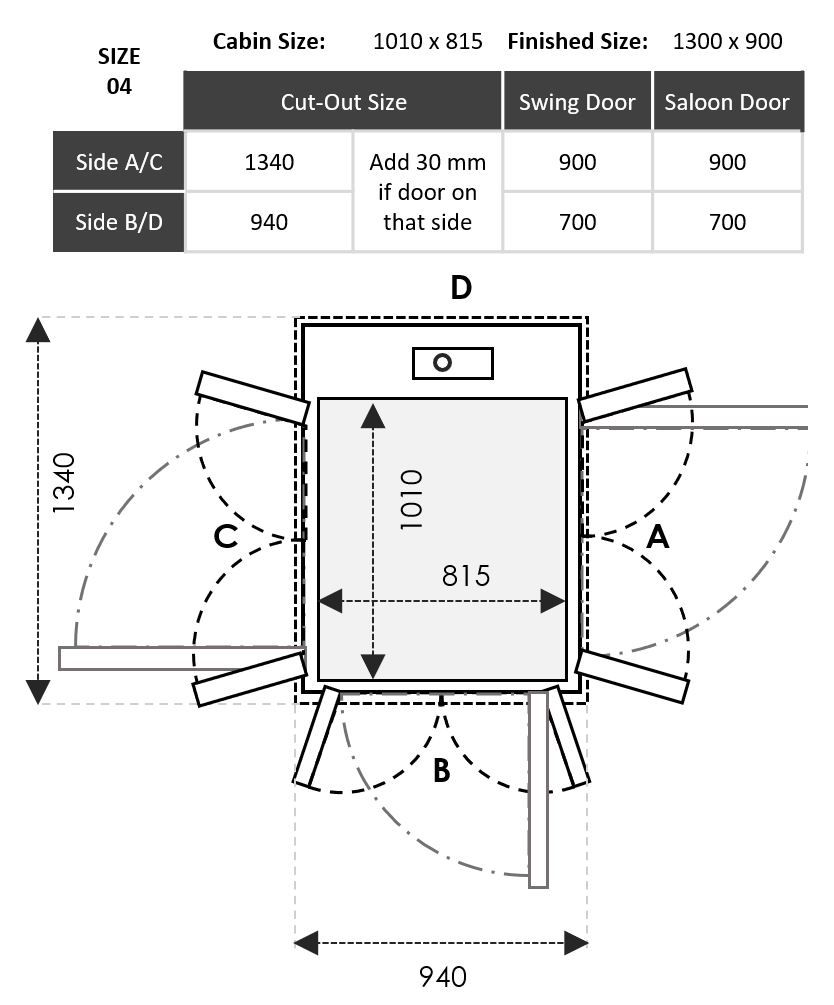

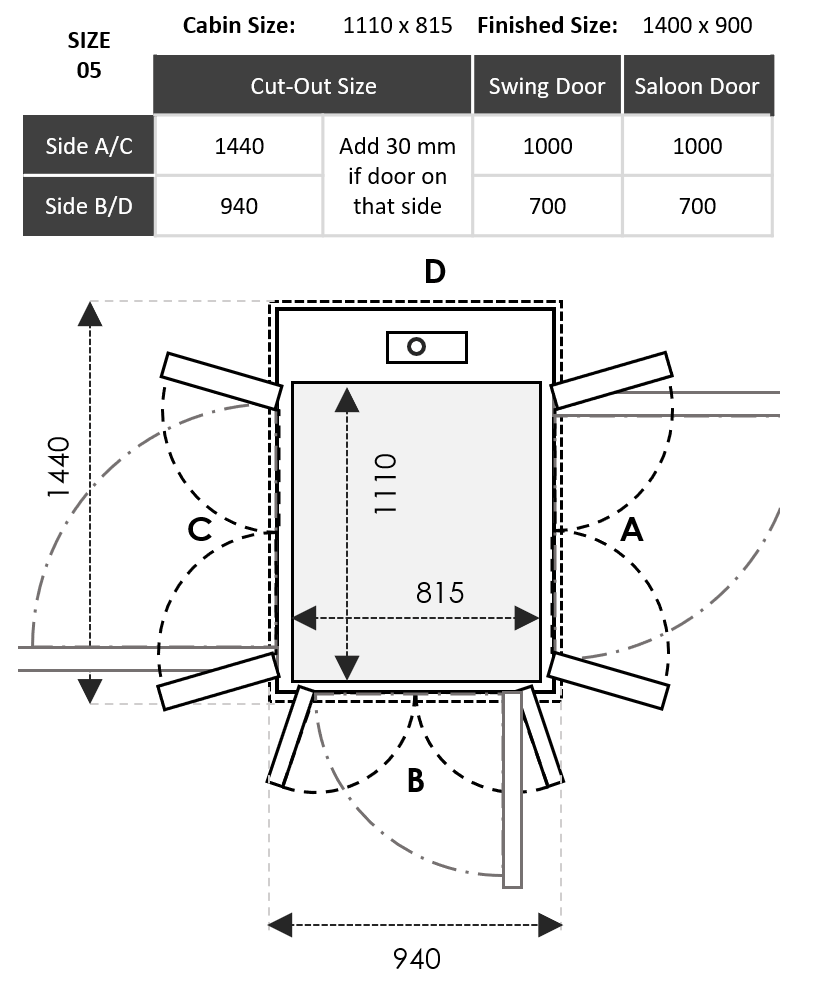

V90 Size 1

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

V90 Size 2

B door, Saloon: dwg

C door, Left hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 3

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 4

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 5

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

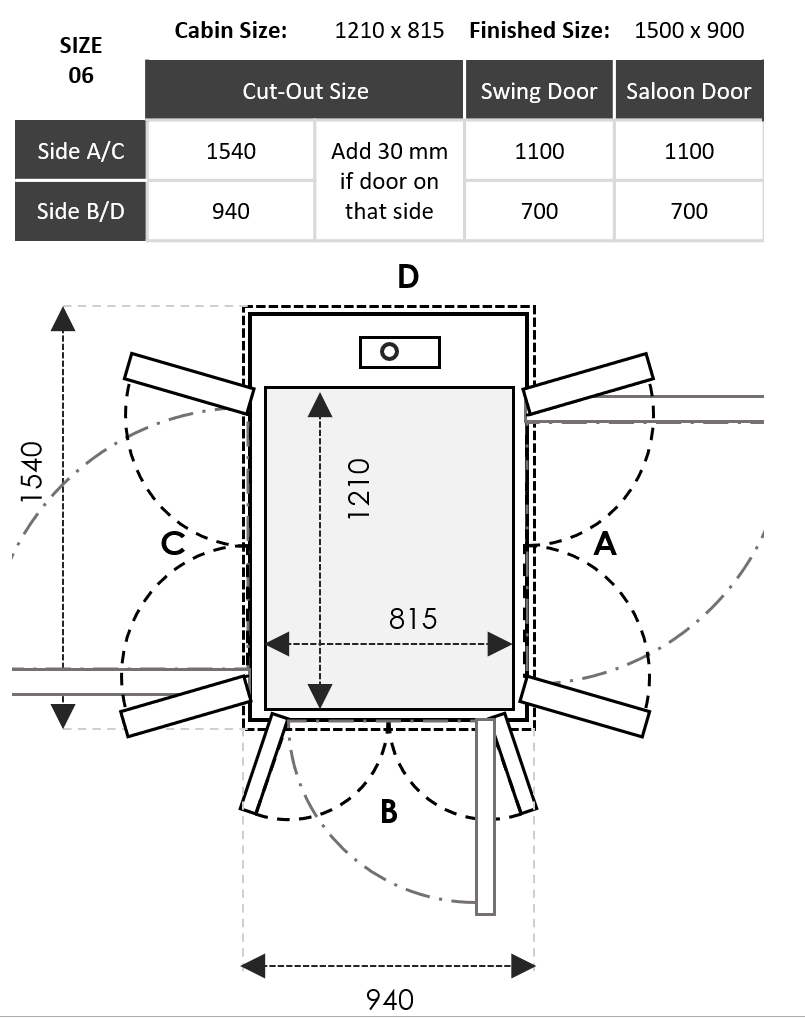

V90 Size 6

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

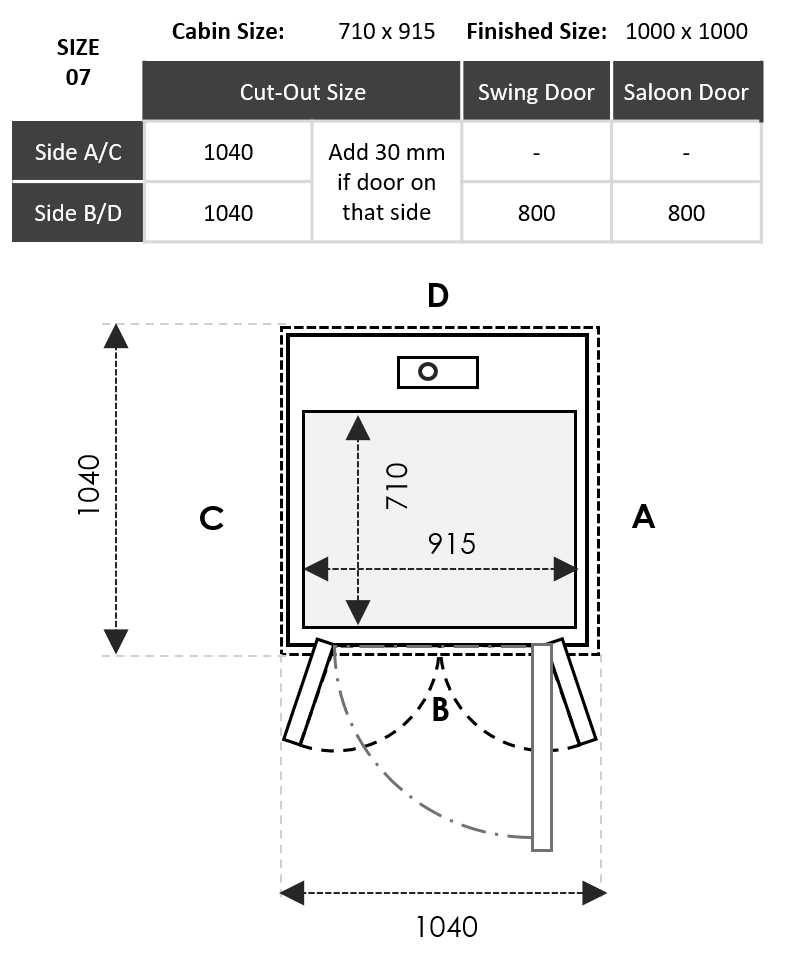

V90 Size 7

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

V90 Size 8

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

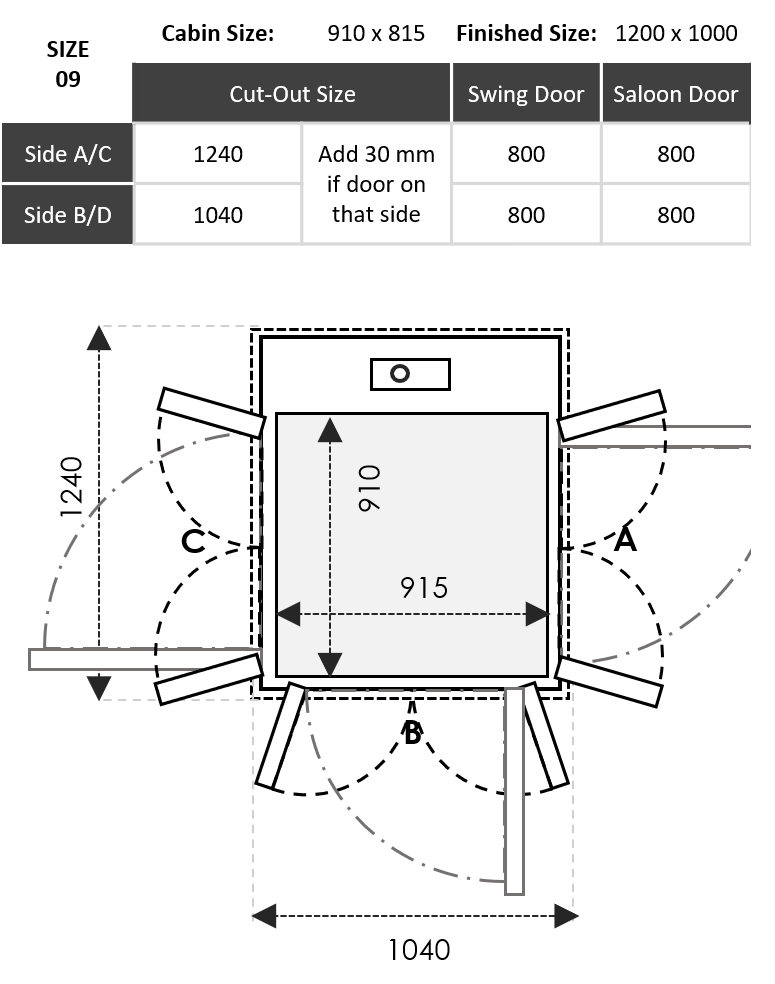

V90 Size 9

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

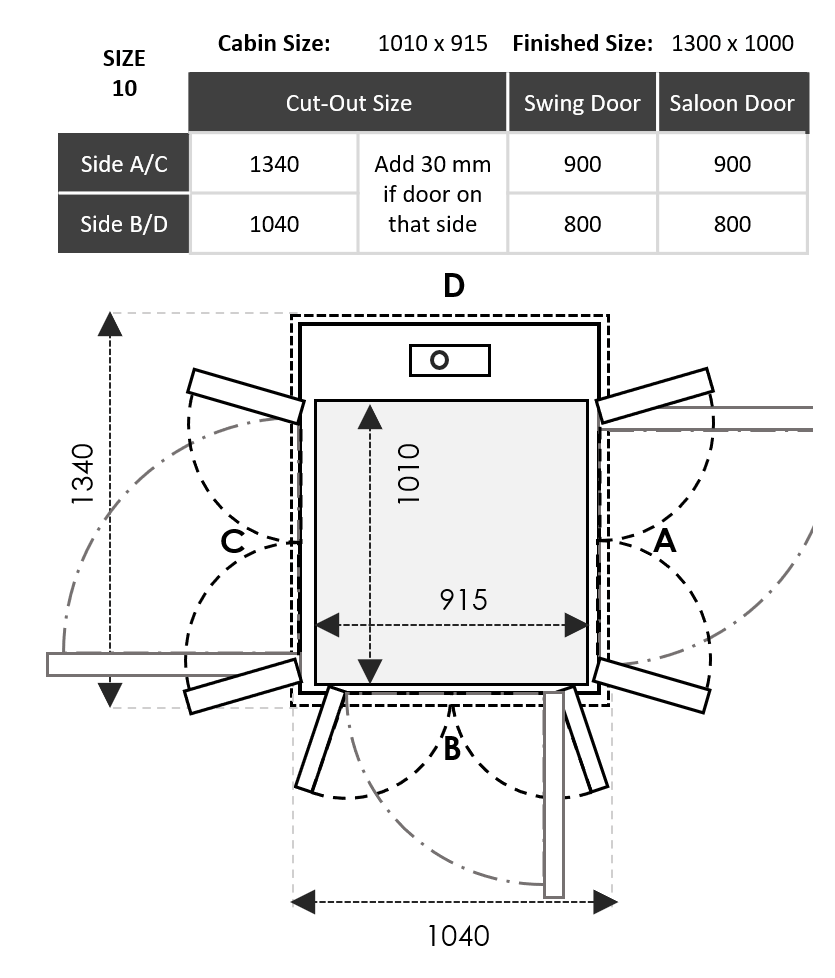

V90 Size 10

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

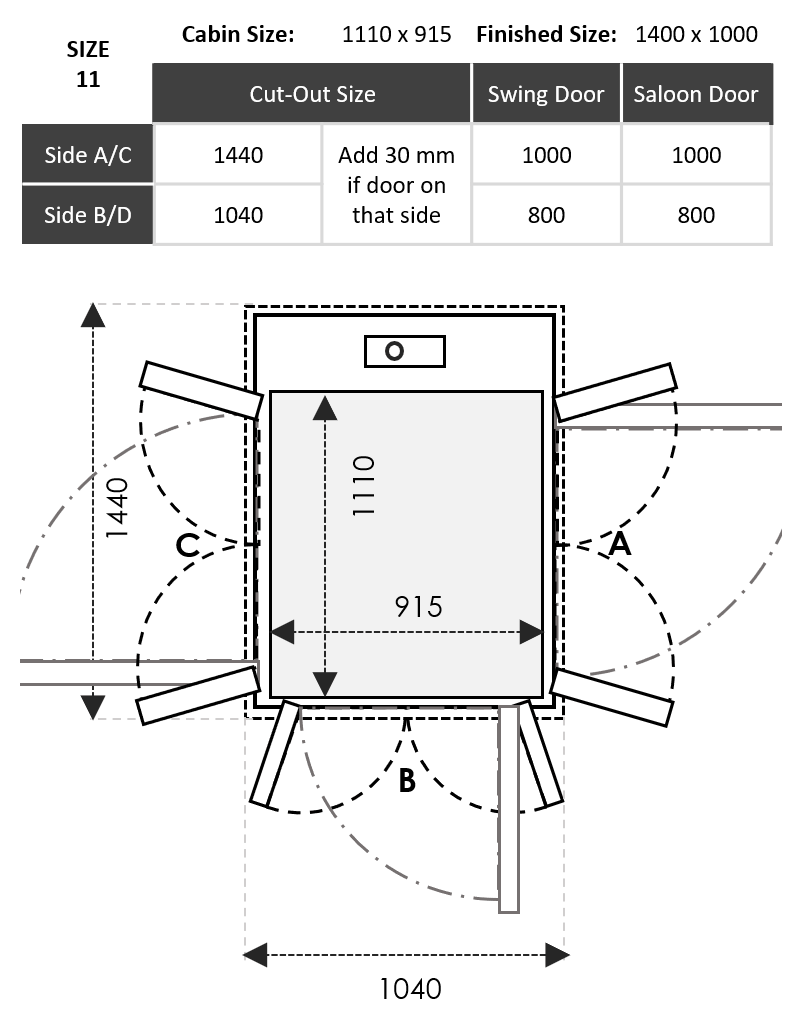

V90 Size 11

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 12

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 13

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

V90 Size 14

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 15

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

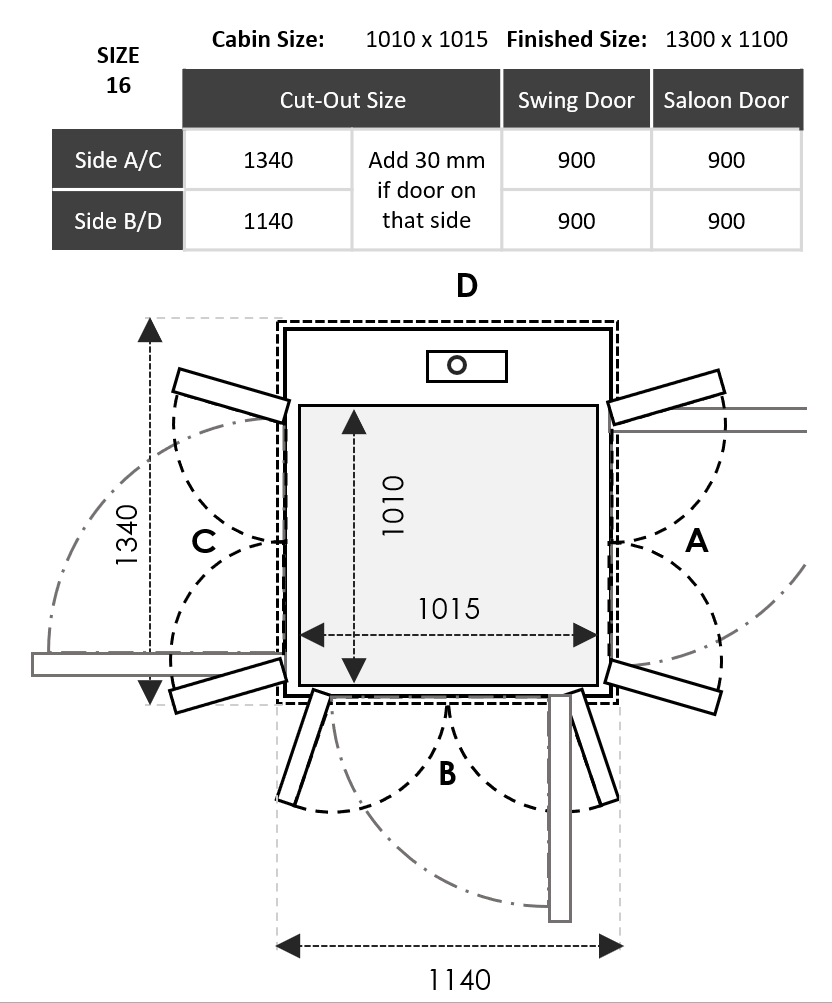

V90 Size 16

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 17

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 18

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 19

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

V90 Size 20

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

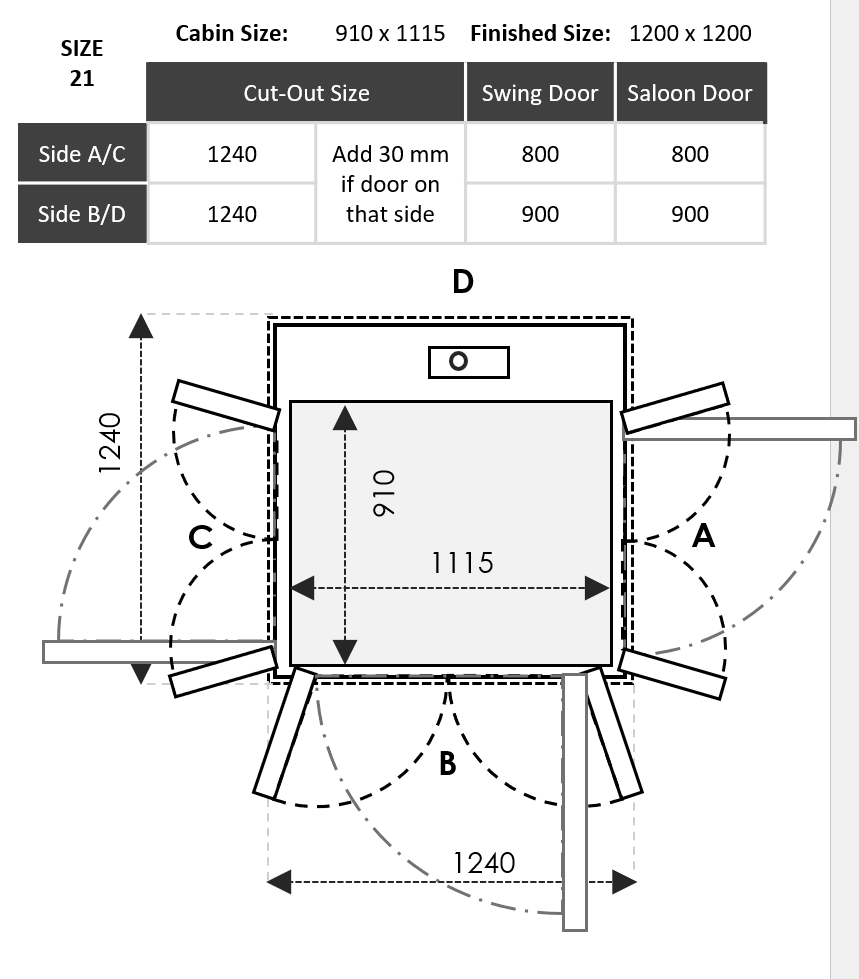

V90 Size 21

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 22

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

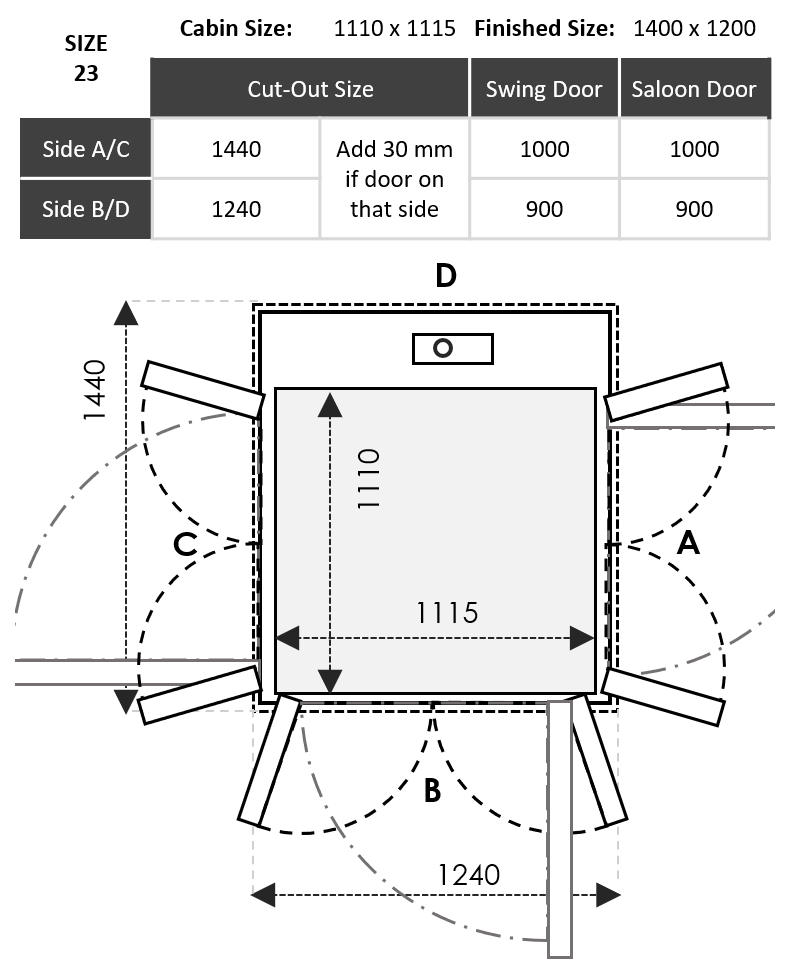

V90 Size 23

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 24

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

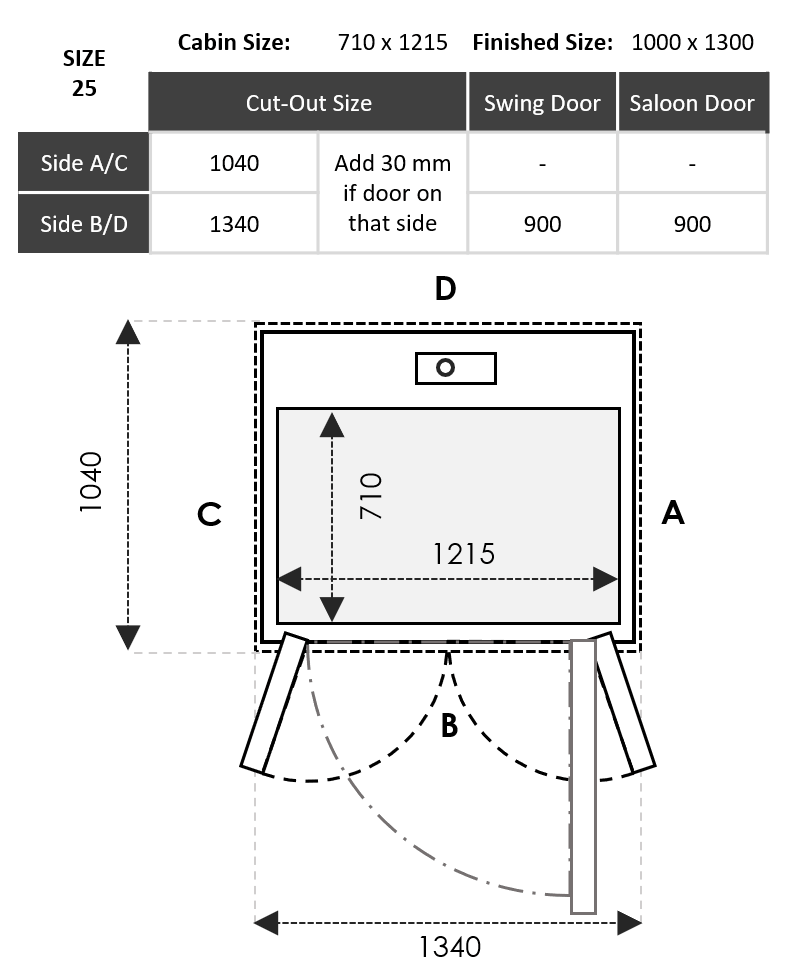

V90 Size 25

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

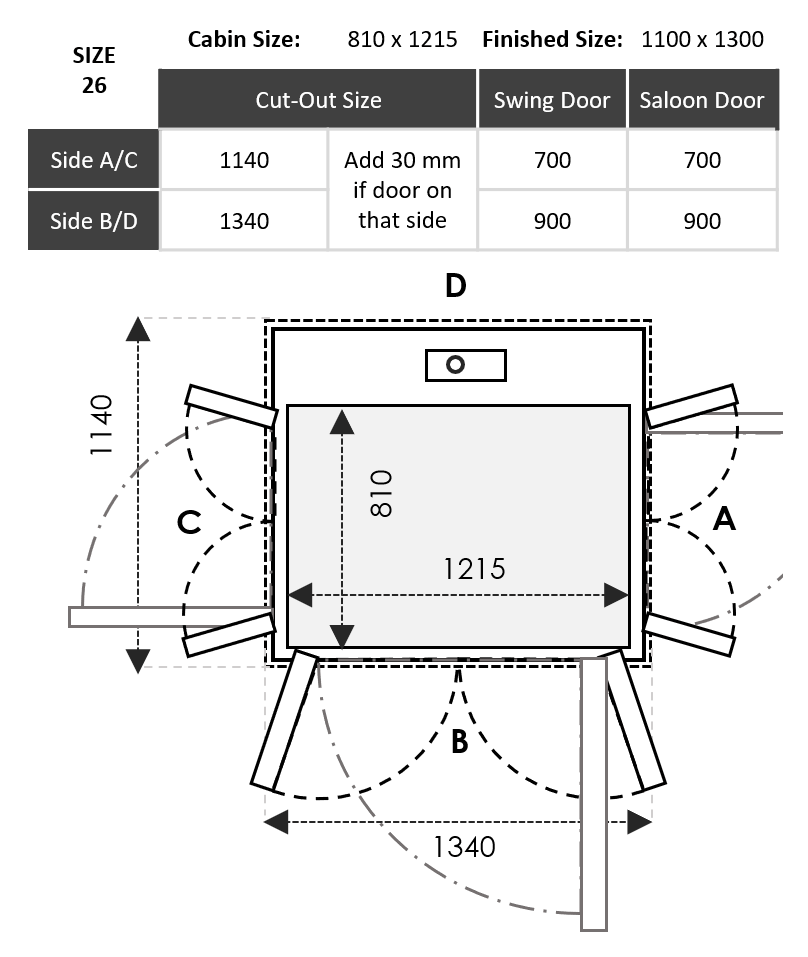

V90 Size 26

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

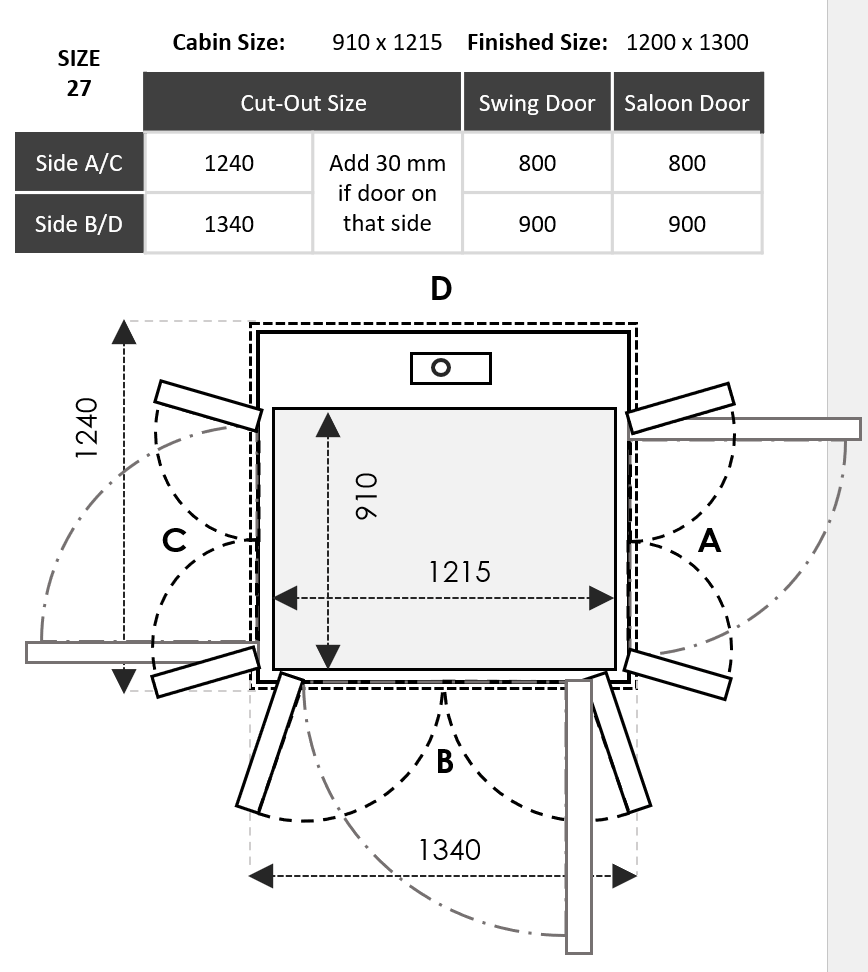

V90 Size 27

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 28

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 29

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 30

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 31

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

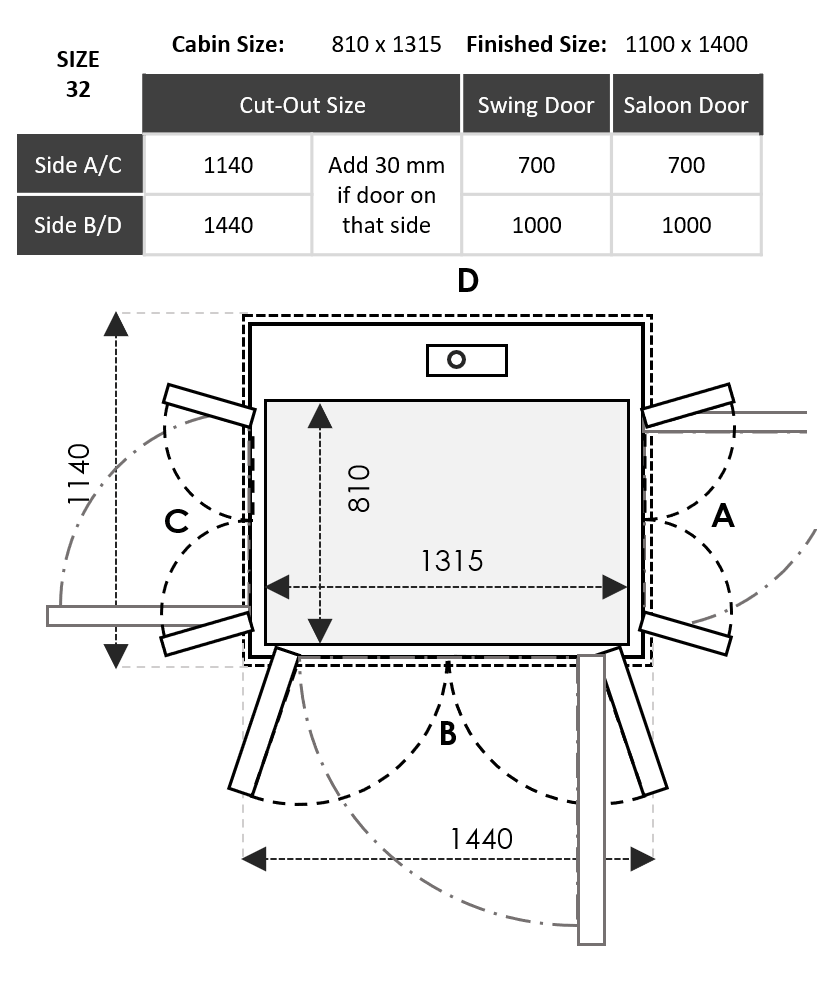

V90 Size 32

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

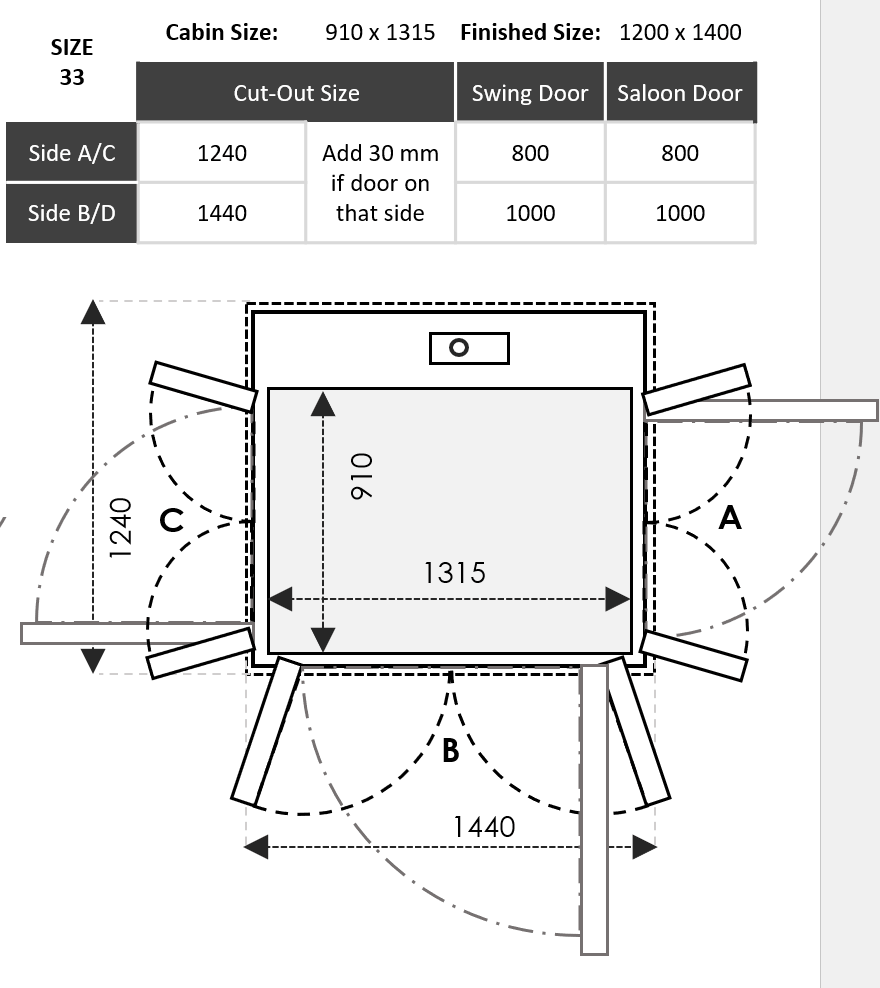

V90 Size 33

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

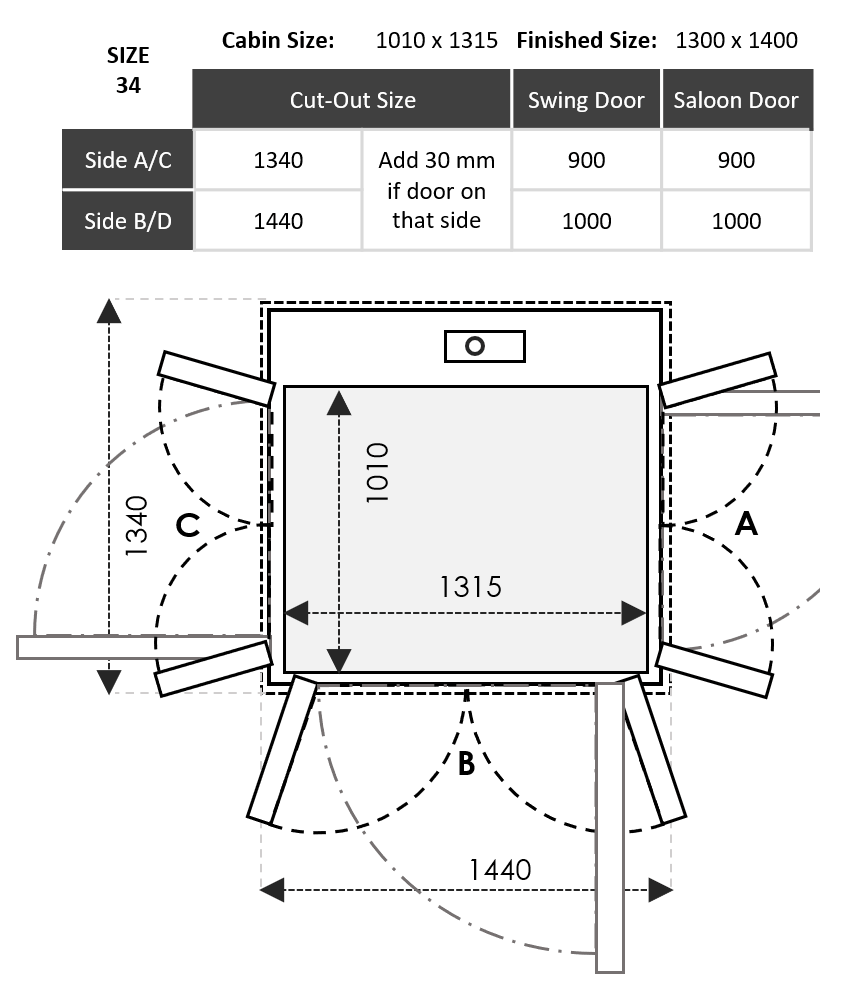

V90 Size 34

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

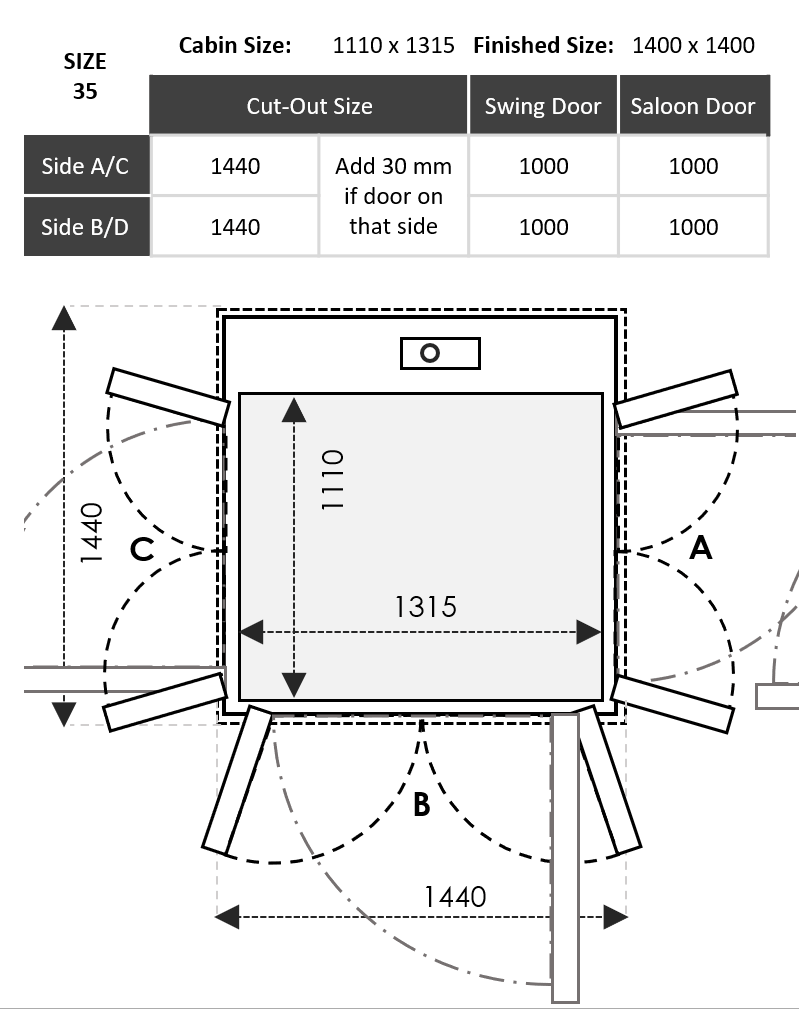

V90 Size 35

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 36

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 37

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

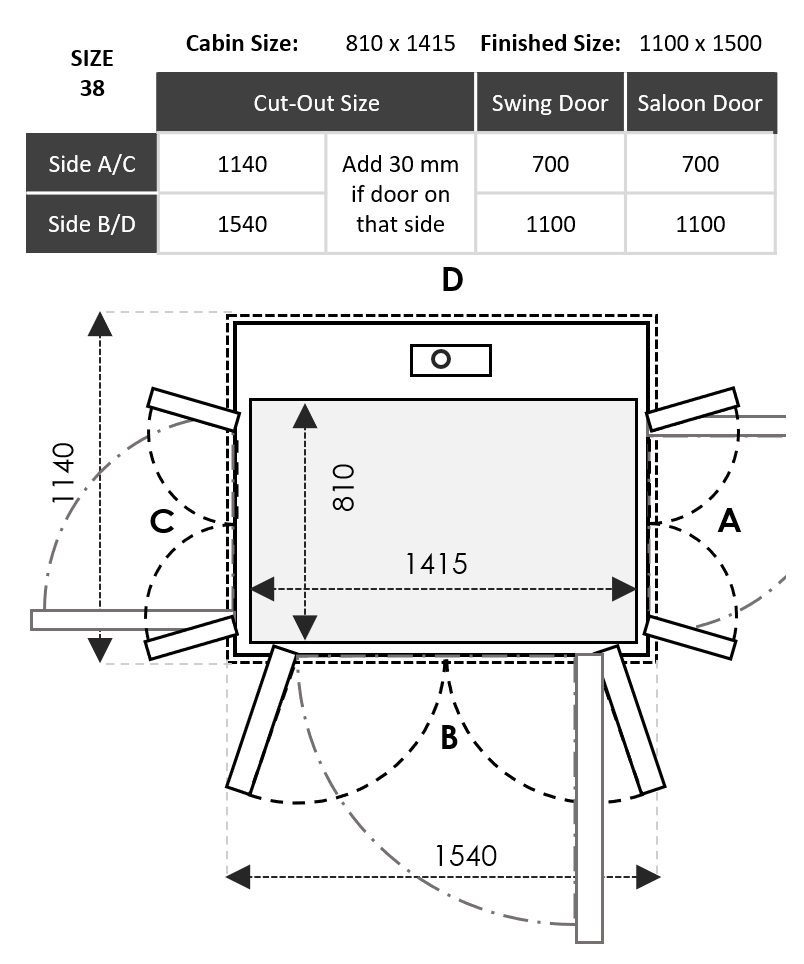

V90 Size 38

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 39

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

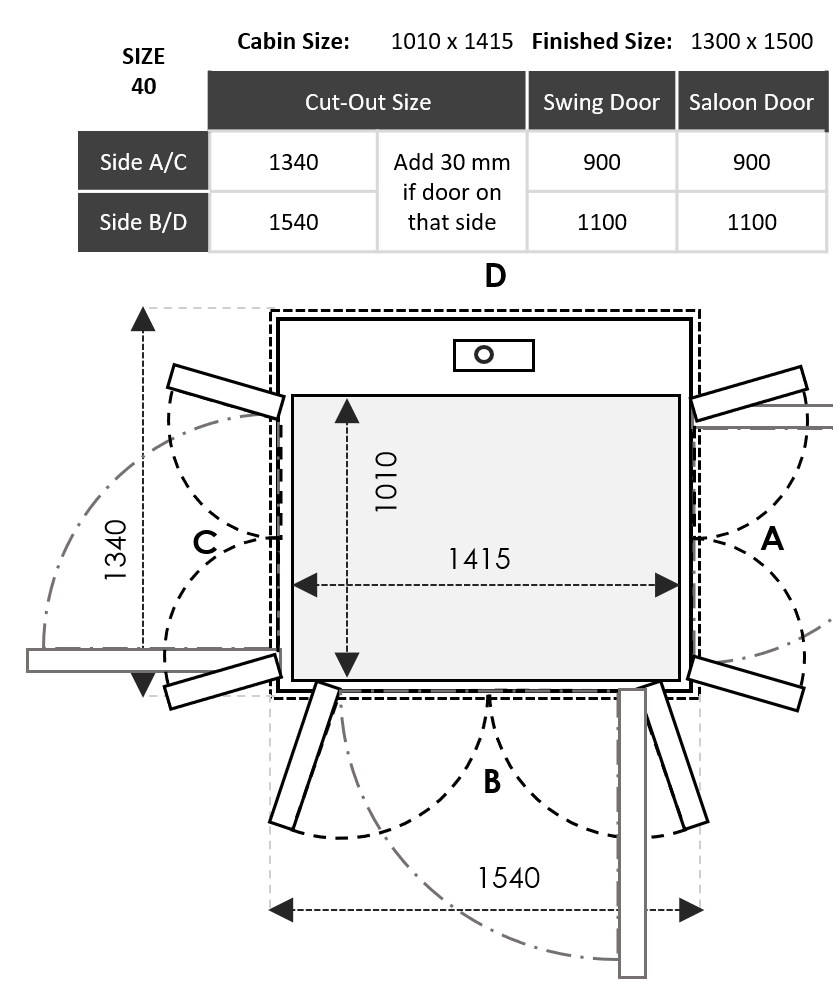

V90 Size 40

A door, Left Hinge: dwg

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

V90 Size 41

A door, Left Hinge: dwg

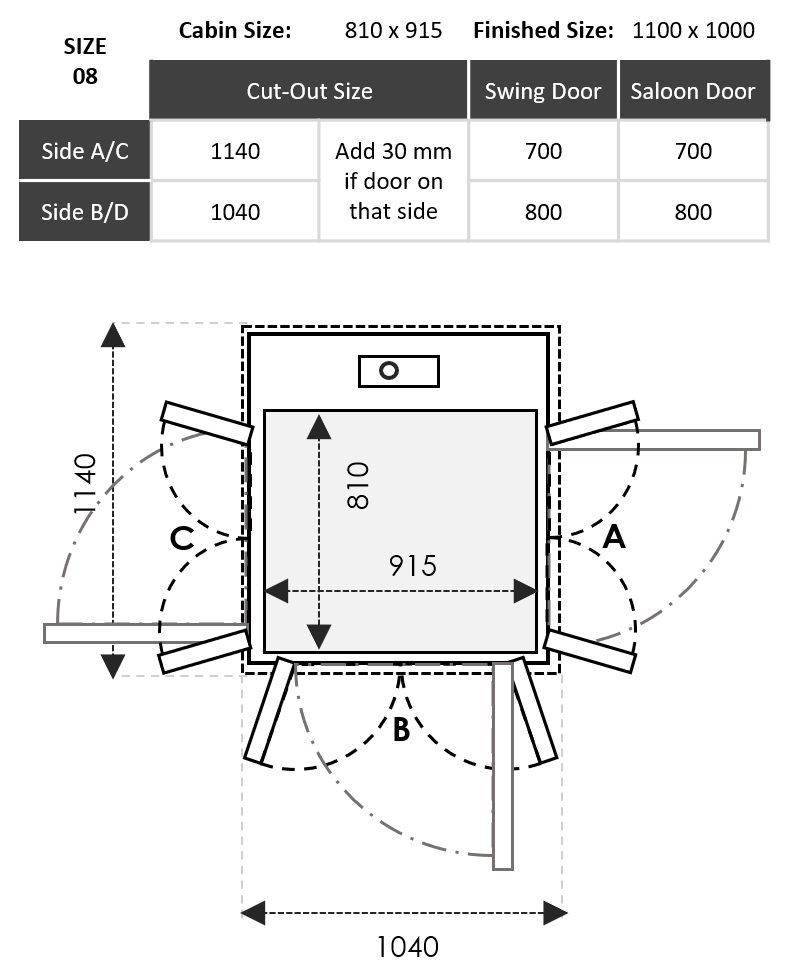

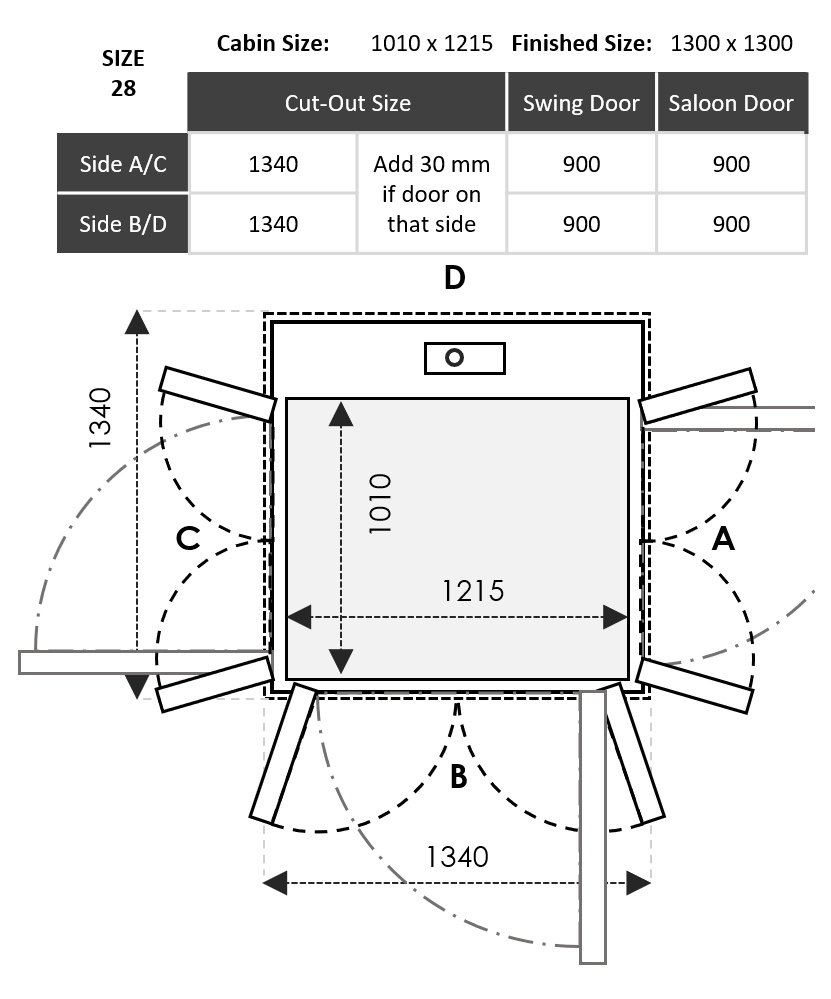

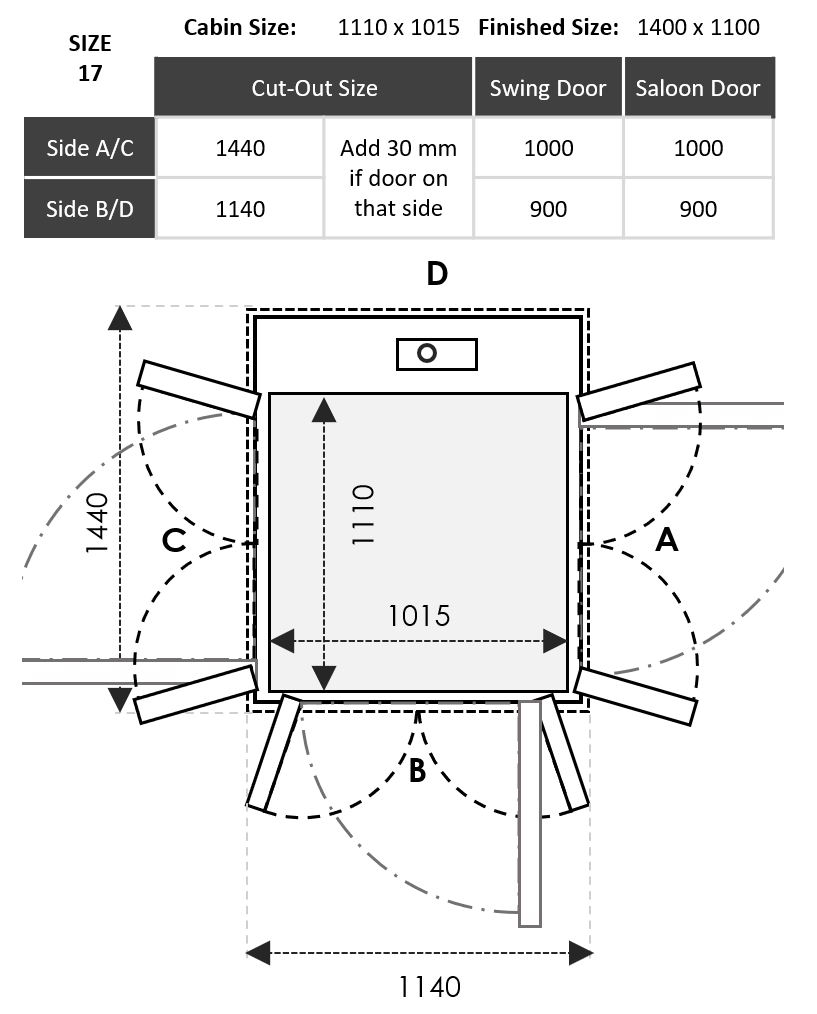

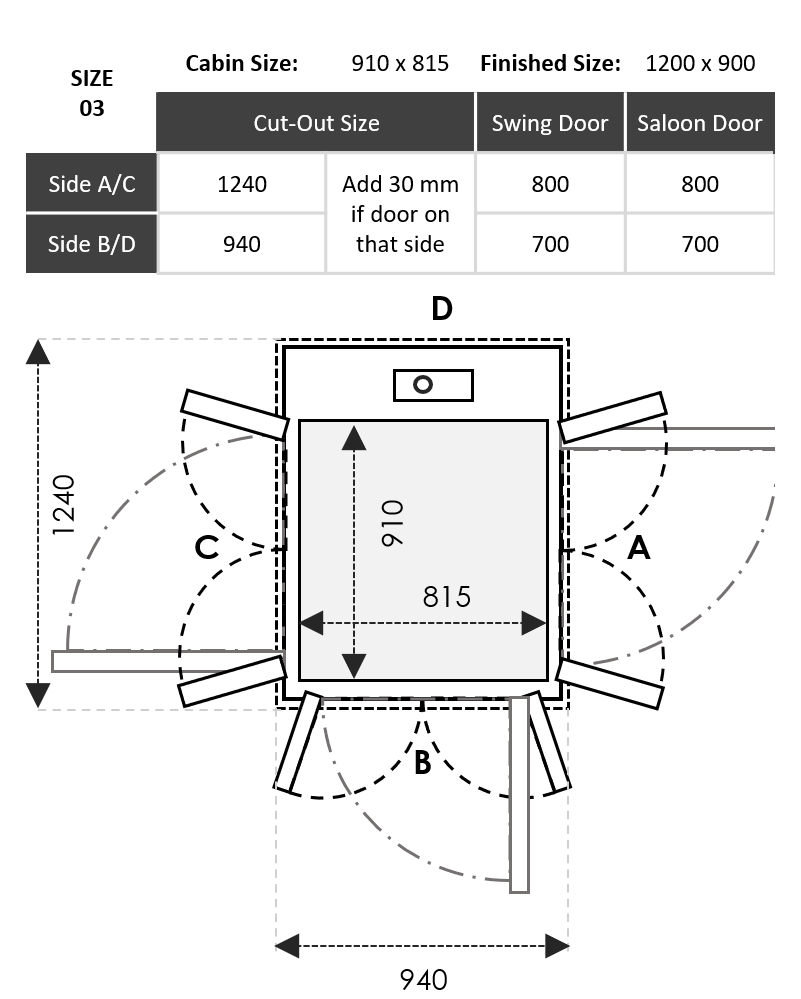

A door, Right hinge: dwg

A door, Saloon: dwg

B door, Left Hinge: dwg

B door, Right hinge: dwg

B door, Saloon: dwg

C door, Left Hinge: dwg

C door, Right hinge: dwg

C door, Saloon: dwg

Prefer a home lift from our Classic lineup? See some drawings hereunder

Cibes Lift Size S1

ลิฟต์แบบแพลตฟอร์ม 3 ชั้น, ขนาด 800 x 830 มม., รับน้ำหนักบรรทุกได้ 300 kg.

  • ดาวน์โหลด: PDF

Cibes Lift Size S2

ลิฟต์แบบแพลตฟอร์ม 2 ชั้น, ขนาด 1000 x 830 มม., รับน้ำหนักบรรทุกได้ 300 kg.

  • ดาวน์โหลด: PDF

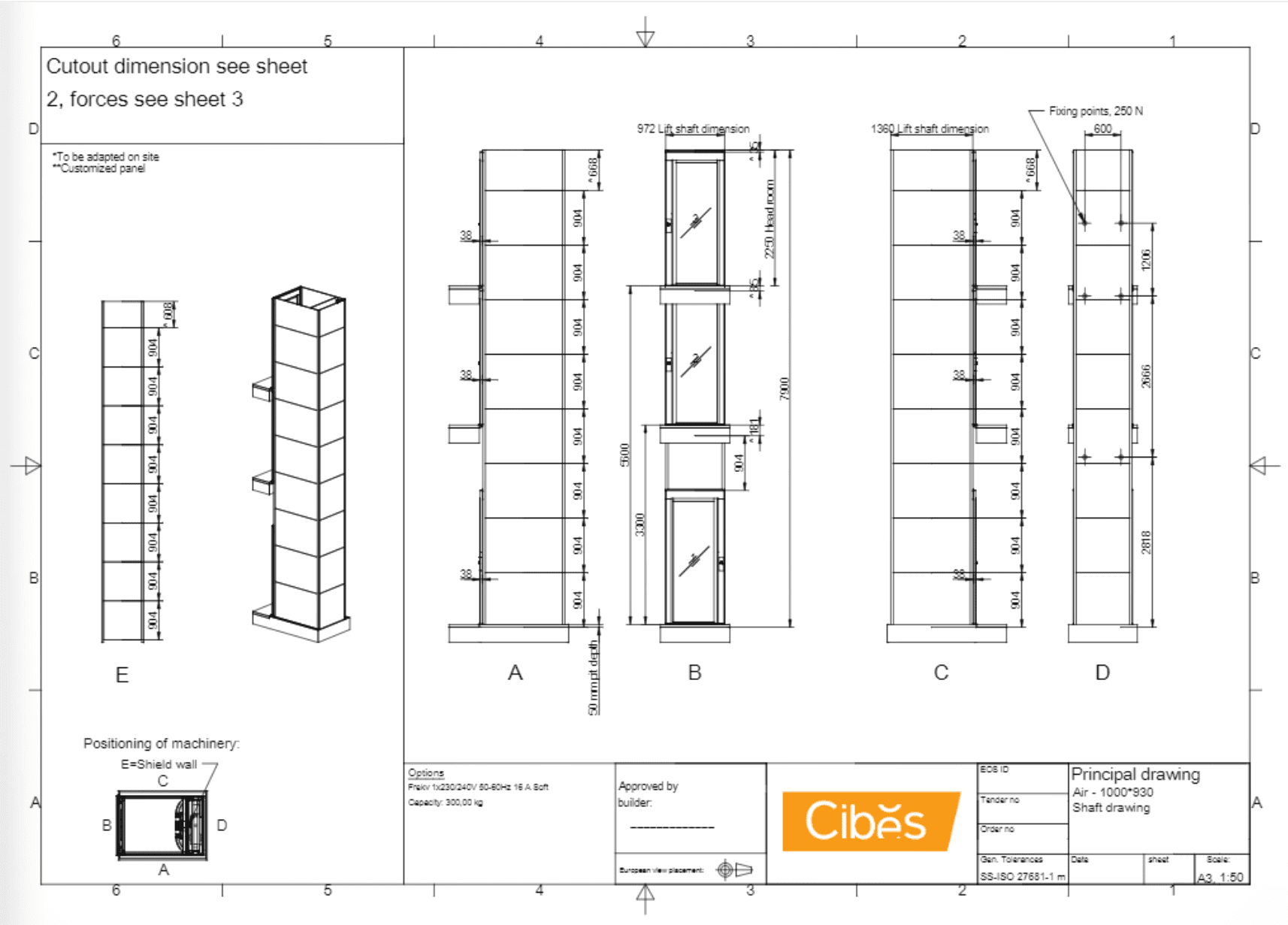

Cibes Lift Size S3

ลิฟต์แบบแพลตฟอร์ม 3 ชั้น, ขนาด 1000 x 930 มม., รับน้ำหนักบรรทุกได้ 300 kg.

  • ดาวน์โหลด: PDF
Discover all 58 home lift sizes now!

Khun Narit

  Interview with Khun Narit, architect, who installed a Home Lift for Elderly [...]

Khun Sittichai

  Interview with Mr. Sittichai Somboon Vejjakan Chairman of Executive Committee, Huai An [...]

Dr. Osoth & Dr. Anong

  Interview with Dr. Osot and Dr. Anong Lekakul and what motivated their [...]
