Premium PowerderCoat
M
Anders P. Hellberg
A strategic designer working in Asia and Europe for more than 20 years, his work is unique. Combining creativity and innovation, the product is sustainable, earning him numerous product design awards.
World-class design Ecosilent Drive System Technology
Since the 1970s, Cibes Lift has been using screw technology, which has not only been tested and met safety standards in Europe. It is also a safety standard in other regions around the

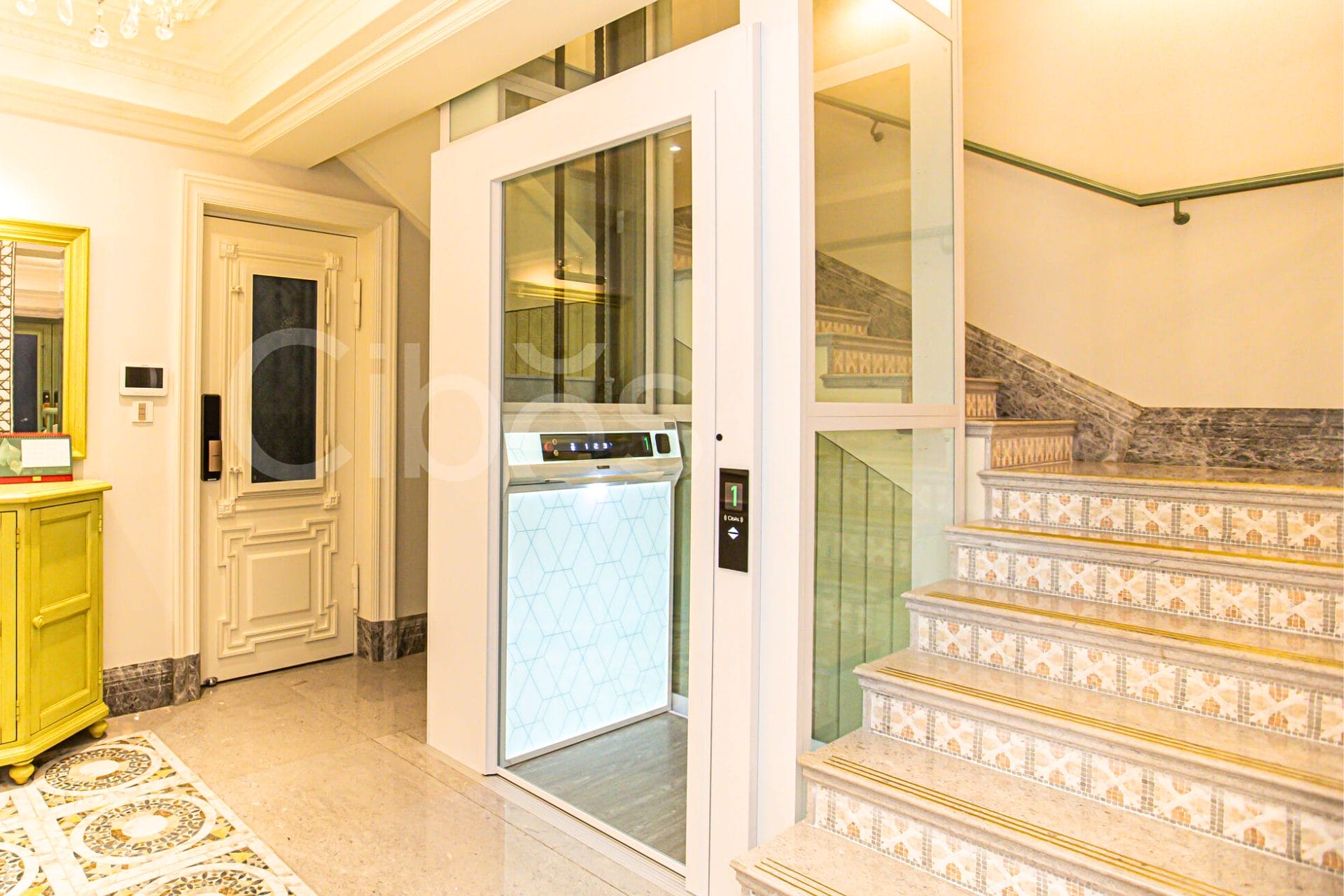

Cibes V80 Aurora | Minimalist Design with Home Lift
Cibes V80 Aurora Autumnal Elegance
Experience a new level of refined luxury with our platform lifts. Featuring Ecosilent 2.0 technology, this lift delivers energy-efficient operation with minimal lubrication and runs at a whisper-quiet 40dB. This model comes standard with swing doors for convenient and easy access.
Cabin size is available 1300/1400mm (V70&V90) only
,and Platform lift is available all size, but 1300/1400/1500mm is horizontal design only
Cibes Lift | Smart Home Lift
Cibes Lifts are equipped with advanced control systems and intelligent control systems to provide you with the convenience of every use. In addition to services, various functions include lift locks, music sound systems, and contact systems. Installed from the factory of manufacture, with early notifications such as alerts when the battery is degraded, and software upgrades are possible.

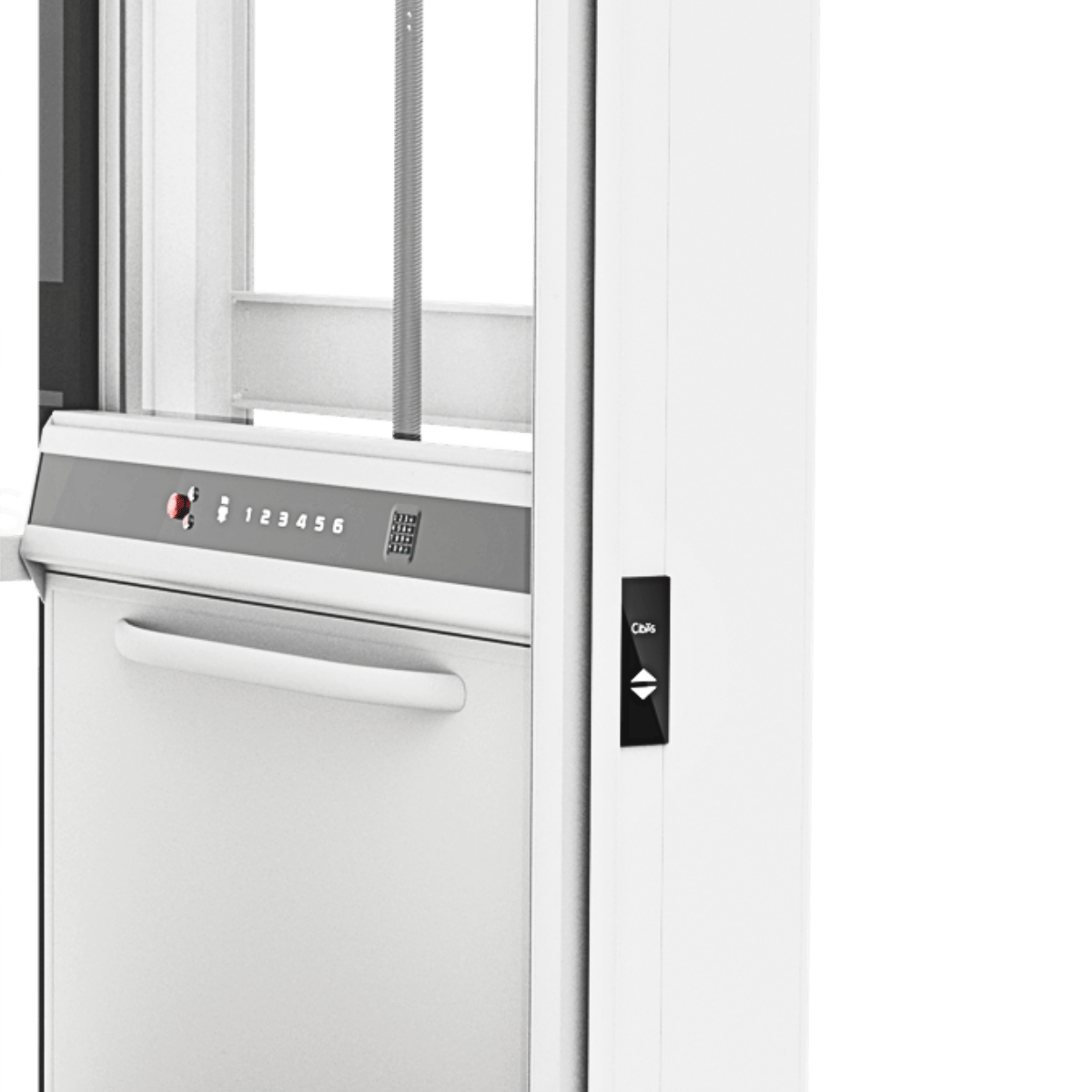

Lift call button with touch screen
The lift call button is designed to be modern with touch and modern functionality. It can clearly tell the number of the current class.
Panoramic View 360-degree Full Safety Glass
Cibes lift is designed as a panoramic 360-degree all-round glass chimney that can be installed both inside and outside the building.
Swing doors come as standard with our lifts
Our lifts are equipped with swing doors as standard, reflecting timeless functionality and style. For added flexibility, we also offer premium saloon doors — engineered for smooth performance and included as part of our standard range.
Cibes Child Lock
Another optional function to prevent children from playing the lift to increase safety in extreme use.
Eco Silent Screw-Driver Version 2.0
Ecosilent 2.0 takes you to the next level of safety and quietness in use. Guide roller that has been developed to be strong and reduce friction with the lift. Make your journey smoother. The load sensor has been improved to be more accurate and safer.
Standard Control Panels
VENTILATION
LIFT OPERATION
STATUS SETTING &
WARNING MESSAGE
CHILD LOCK
CUSTOME MUSIC
information about your lift, such as the next maintenance day and the distance traveled!
Set up Enable or disable child locks for your lift with a special PIN.
The numbers will move and change size as your lift moves from floor to floor.
Turn on/off, or adjust the fan intensity directly on the control panel
Operate your lift in style by listening to music from the pre-loaded curated music in your lift control panel!
CIBES FLOORING SELECTIONS
The floor of a Cibes Lift is completely PVC-free and contains no harmful substances. Made from up to 98% natural raw materials, of which 70% are rapidly renewable, it stands as a truly natural and high-quality product. Environmentally friendly from start to finish, it requires no offsetting to achieve sustainability.
At Cibes Lift, we are fully committed to closing the loop. Our flooring meets the rigorous CDPH standard for interior materials and has been carefully selected to ensure the highest environmental and health standards. We use certified linoleum flooring, endorsed by the British Allergy Foundation as hypoallergenic — making it not only a sustainable choice, but a healthier one for your home.
TECHNICAL SPECIFICATIONS
| Installation | Indoor / Outdoor |
| Rate Load | 400kg |
| Power Supply | 1 x 220V, 3 x 380V |
| Speed | 0.15 m/s |
| Pit Depth | 50-70mm / 0mm optional with ramp |
| Motor Power | 3kW |
| Maximum Stops | 6 |
| Maximum Travel | 20m |
| Drive | Screw-Driven System (Ecosilent2.0) |
| Machine Room | Machine Roomless (MRL) |
| PLATFORM SIZE | ||||||
| PLATFORM SIZE | Shaft Size (in mm) | Cut Out Size (in mm) | ||||
| A/C Side | B/D Side | A/C Side | B/D Side | A/C Side | B/D Side | |
| 1 | 635 | 850 | 1000 | 900 | 1070 | 940 |
| 2 | 735 | 850 | 1100 | 900 | 1170 | 940 |
| 3 | 835 | 850 | 1200 | 900 | 1270 | 940 |
| 4 | 935 | 850 | 1300 | 900 | 1370 | 940 |
| 5 | 1035 | 850 | 1400 | 900 | 1470 | 940 |
| 6 | 1135 | 850 | 1500 | 900 | 1570 | 940 |
| 7 | 635 | 950 | 1000 | 1000 | 1070 | 1040 |
| 8 | 735 | 950 | 1100 | 1000 | 1170 | 1040 |
| 9 | 835 | 950 | 1200 | 1000 | 1270 | 1040 |
| 10 | 935 | 950 | 1300 | 1000 | 1370 | 1040 |
| 11 | 1035 | 950 | 1400 | 1000 | 1470 | 1040 |
| 12 | 1135 | 950 | 1500 | 1000 | 1570 | 1040 |
| 13 | 635 | 1050 | 1000 | 1100 | 1070 | 1140 |
| 14 | 735 | 1050 | 1100 | 1100 | 1170 | 1140 |
| 15 | 835 | 1050 | 1200 | 1100 | 1270 | 1140 |
| 16 | 935 | 1050 | 1300 | 1100 | 1370 | 1140 |
| 17 | 1035 | 1050 | 1400 | 1100 | 1470 | 1140 |
| 18 | 1135 | 1050 | 1500 | 1100 | 1570 | 1140 |
| 19 | 635 | 1150 | 1000 | 1200 | 1070 | 1240 |
| 20 | 735 | 1150 | 1100 | 1200 | 1170 | 1240 |
| 21 | 835 | 1150 | 1200 | 1200 | 1270 | 1240 |
| 22 | 935 | 1150 | 1300 | 1200 | 1370 | 1240 |
| 23 | 1035 | 1150 | 1400 | 1200 | 1470 | 1240 |
| 24 | 1135 | 1150 | 1500 | 1200 | 1570 | 1240 |
| 25 | 635 | 1250 | 1000 | 1300 | 1070 | 1340 |
| 26 | 735 | 1250 | 1100 | 1300 | 1170 | 1340 |
| 27 | 835 | 1250 | 1200 | 1300 | 1270 | 1340 |
| 28 | 935 | 1250 | 1300 | 1300 | 1370 | 1340 |
| 29 | 1035 | 1250 | 1400 | 1300 | 1470 | 1340 |
| 30 | 1135 | 1250 | 1500 | 1300 | 1570 | 1340 |
| 31 | 635 | 1350 | 1000 | 1400 | 1070 | 1440 |
| 32 | 735 | 1350 | 1100 | 1400 | 1170 | 1440 |
| 33 | 835 | 1350 | 1200 | 1400 | 1270 | 1440 |
| 34 | 935 | 1350 | 1300 | 1400 | 1370 | 1440 |
| 35 | 1035 | 1350 | 1400 | 1400 | 1470 | 1440 |
| 36 | 1135 | 1350 | 1500 | 1400 | 1570 | 1440 |
| 37 | 635 | 1450 | 1000 | 1500 | 1070 | 1540 |
| 38 | 735 | 1450 | 1100 | 1500 | 1170 | 1540 |
| 39 | 835 | 1450 | 1200 | 1500 | 1270 | 1540 |
| 40 | 935 | 1450 | 1300 | 1500 | 1370 | 1540 |
| 41 | 1035 | 1450 | 1400 | 1500 | 1470 | 1540 |
เราอยากให้คุณเพลิดเพลินกับความสะดวกสบายของลิฟต์ได้ตลอดวันและตลอดคืน โดยไม่ต้องปลุกคนในครอบครัวของคุณให้ตื่นเลย เพื่อมอบการเดินทางที่ราบรื่นและเงียบสงบให้กับคุณและคนที่คุณรัก เราจึงได้รับแรงบันดาลใจจากความเงียบสงบของธรรมชาติในสวีเดน ผลลัพธ์ที่ได้คือแทบจะไม่มีเสียงเลย
New Generation Ecosilent
Lifting Screw
สกรูยกมีระยะพิทช์สูงขึ้น 3 เท่า (36 มม.) และข้อต่อสกรูใหม่มีความเรียบเนียนมากจนคุณแทบจะไม่สังเกตเห็นระหว่างการยก
Safety, Silent, Energy-efficient
Energy Label A
Drive unit
Guide Rollers
SilentBox
Permanent Magnet Synchronous Motor
Silent Sound
มอเตอร์ซิงโครนัสแม่เหล็กถาวร (Permanent Magnet Synchronous Motor : PMSM) หรือ มอเตอร์ซิงโครนัสชนิดแม่เหล็กถาวร ถือเป็นมอเตอร์ที่มีประสิทธิภาพการทำงานสูงถึง 95% (Motor Efficiency) มอเตอร์ประเภทนี้เป็นมอเตอร์ไฟฟ้ากระแสสลับ สนามไฟฟ้าจะถูกกระตุ้นด้วยแม่เหล็กถาวร PMSM ทำให้ลิฟต์เงียบมาก
ลูกกลิ้งนำทางช่วยลดแรงเสียดทานลง 90% และไม่ต้องใช้การหล่อลื่น ทำให้การบำรุงรักษาสะดวกยิ่งขึ้น
ชุดไดรฟ์ถูกบรรจุอยู่ในตัวเรือนโลหะกันเสียงที่หรูหรา ซึ่งออกแบบมาเพื่อคลุมชุดไดรฟ์และกำจัดเสียงรบกวนความถี่สูง
ตัวเลขจะเคลื่อนและเปลี่ยนขนาดเมื่อลิฟต์ของคุณเคลื่อนจากชั้นหนึ่งไปอีกชั้นหนึ่ง
ลิฟต์ที่ติดตั้งระบบขับเคลื่อนอันล้ำสมัยของเราได้รับฉลาก Energy Label A และใช้พลังงานน้อยกว่าลิฟต์ที่ไม่มีฉลาก Energy Label A ถึง 45%
การใช้งานลิฟท์เงียบสงบ ไม่เกิน 40dB โดย Springwell Audio AB, member of the Swedish Acoustical Society, www.springwellaudio.se.
ISO 14001:2015
No. : 01 100 2132736
Certified to ISO 14001:2015 environmental management standards by TÜV Rheinland.
Certified to ISO 9001:2015 quality management standards by TÜV Rheinland.
Certified by Liftinstituut according to European Safety Standard EN81-41:2010, Machinery Directive 2006/42/EC, and EC-Type Examination.
Certified by Liftinstituut with Energy Label A for outstanding energy efficiency.
Certified noise test report for the Ecosilent Drive System by Springwell Audio AB.
OUR CERTIFICATE
Our Projects | Cibes Lift (Thailand)
Cibes V80 Aurora Out door Lift 3 floors with Gothic Graphite Black (size 1400×1400)
-
Cibes V80 Aurora Home Lift 4 floors with Gothic Graphite Black (Size 735×950)
-
Cibes V80 Aurora Platform 2th Floors with Gothic Graphite Black
