Anders P. Hellberg
A strategic designer working in Asia and Europe for more than 20 years, his work is unique. Combining creativity and innovation, the product is sustainable, earning him numerous product design awards.
World-class design Ecosilent Drive System Technology
Since the 1970s, Cibes Lift has been using screw technology, which has not only been tested and met safety standards in Europe. It is also a safety standard in other regions around the

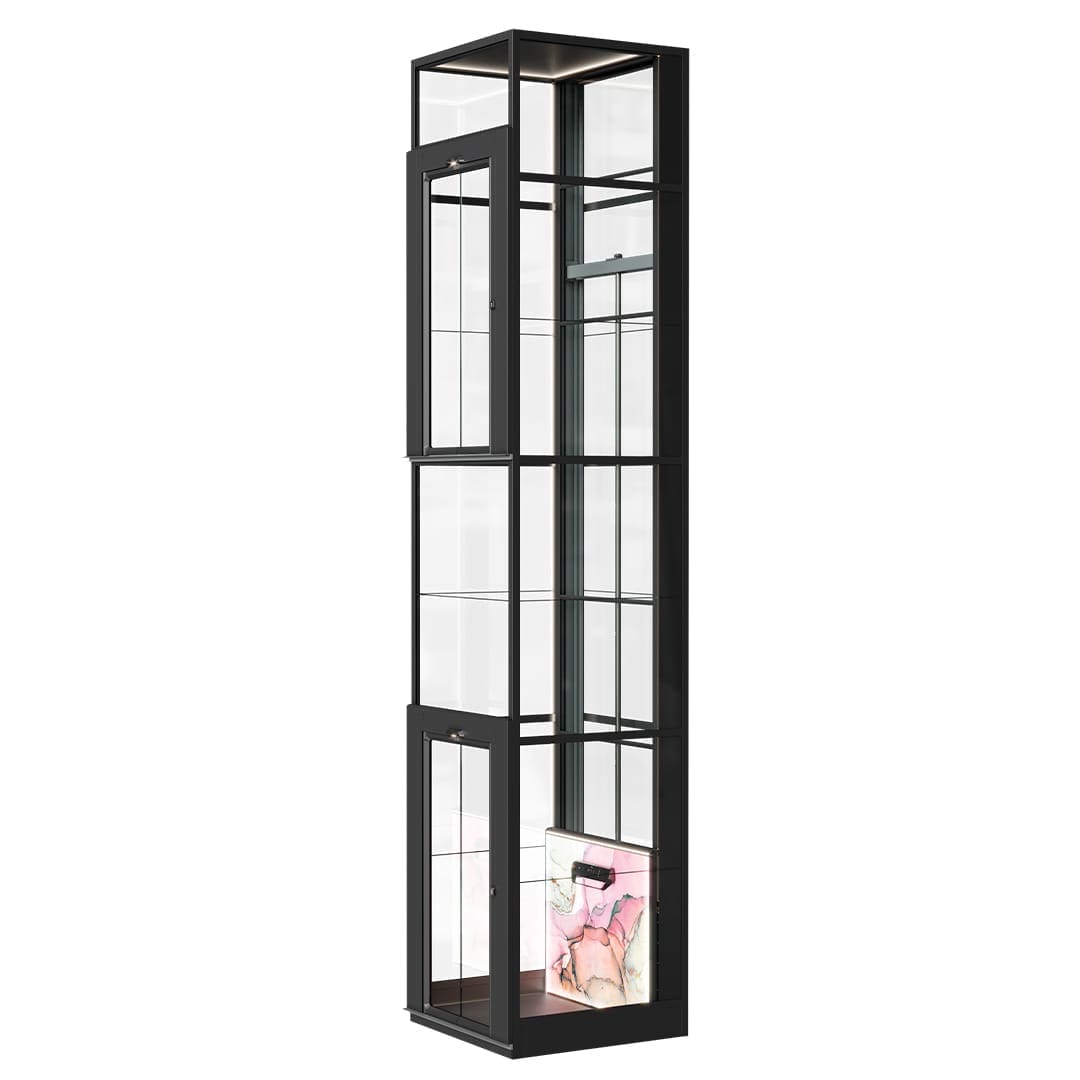

Cibes V80 Aurora+
Uniquely Elegant Pattern on the Control Panel
Cibes V80 Aurora+ is uniquely beautiful
Complete the flatness and elegance to experience a new experience in using platform elevators.
Ecosilent2.0 technology, it helps make the elevator work energy-saving. It uses little lubricating oil and only operates quietly at 40dB. For this model, it is a swing door for comfortable entry and exit.
Cibes Lift | Smart Home Lift
Cibes Lifts are equipped with advanced control systems and intelligent control systems to provide you with the convenience of every use. In addition to services, various functions include lift locks, music sound systems, and contact systems. Installed from the factory of manufacture, with early notifications such as alerts when the battery is degraded, and software upgrades are possible.
Lift call button with touch screen
The lift call button is designed to be modern with touch and modern functionality. It can clearly tell the number of the current class.
Panoramic View 360-degree Full Safety Glass
Cibes lift is designed as a panoramic 360-degree all-round glass chimney that can be installed both inside and outside the building.
Swing doors come as standard with our lifts
Our lifts are equipped with swing doors as standard, reflecting timeless functionality and style. For added flexibility, we also offer premium saloon doors โ engineered for smooth performance and included as part of our standard range.
Cibes Child Lock
Another optional function to prevent children from playing the lift to increase safety in extreme use.
Eco Silent Screw-Driver Version 2.0
Ecosilent 2.0 takes you to the next level of safety and quietness in use. Guide roller that has been developed to be strong and reduce friction with the lift. Make your journey smoother. The load sensor has been improved to be more accurate and safer.
TECHNICAL SPECIFICATIONS
| Installation | Indoor / Outdoor |
| Rate Load | 400kg |
| Power Supply | 1 x 220V, 3 x 380V |
| Speed | 0.15 m/s |
| Pit Depth | 50-70mm / 0mm optional with ramp |
| Motor Power | 3kW |
| Maximum Stops | 6 |
| Maximum Travel | 20m |
| Drive | Screw-Driven System (Ecosilent2.0) |
| Machine Room | Machine Roomless (MRL) |
| PLATFORM SIZE | ||||||
| PLATFORM SIZE | Shaft Size (in mm) | Cut Out Size (in mm) | ||||
| A/C Side | B/D Side | A/C Side | B/D Side | A/C Side | B/D Side | |
| 1 | 635 | 850 | 1000 | 900 | 1070 | 940 |
| 2 | 735 | 850 | 1100 | 900 | 1170 | 940 |
| 3 | 835 | 850 | 1200 | 900 | 1270 | 940 |
| 4 | 935 | 850 | 1300 | 900 | 1370 | 940 |
| 5 | 1035 | 850 | 1400 | 900 | 1470 | 940 |
| 6 | 1135 | 850 | 1500 | 900 | 1570 | 940 |
| 7 | 635 | 950 | 1000 | 1000 | 1070 | 1040 |
| 8 | 735 | 950 | 1100 | 1000 | 1170 | 1040 |
| 9 | 835 | 950 | 1200 | 1000 | 1270 | 1040 |
| 10 | 935 | 950 | 1300 | 1000 | 1370 | 1040 |
| 11 | 1035 | 950 | 1400 | 1000 | 1470 | 1040 |
| 12 | 1135 | 950 | 1500 | 1000 | 1570 | 1040 |
| 13 | 635 | 1050 | 1000 | 1100 | 1070 | 1140 |
| 14 | 735 | 1050 | 1100 | 1100 | 1170 | 1140 |
| 15 | 835 | 1050 | 1200 | 1100 | 1270 | 1140 |
| 16 | 935 | 1050 | 1300 | 1100 | 1370 | 1140 |
| 17 | 1035 | 1050 | 1400 | 1100 | 1470 | 1140 |
| 18 | 1135 | 1050 | 1500 | 1100 | 1570 | 1140 |
| 19 | 635 | 1150 | 1000 | 1200 | 1070 | 1240 |
| 20 | 735 | 1150 | 1100 | 1200 | 1170 | 1240 |
| 21 | 835 | 1150 | 1200 | 1200 | 1270 | 1240 |
| 22 | 935 | 1150 | 1300 | 1200 | 1370 | 1240 |
| 23 | 1035 | 1150 | 1400 | 1200 | 1470 | 1240 |
| 24 | 1135 | 1150 | 1500 | 1200 | 1570 | 1240 |
| 25 | 635 | 1250 | 1000 | 1300 | 1070 | 1340 |
| 26 | 735 | 1250 | 1100 | 1300 | 1170 | 1340 |
| 27 | 835 | 1250 | 1200 | 1300 | 1270 | 1340 |
| 28 | 935 | 1250 | 1300 | 1300 | 1370 | 1340 |
| 29 | 1035 | 1250 | 1400 | 1300 | 1470 | 1340 |
| 30 | 1135 | 1250 | 1500 | 1300 | 1570 | 1340 |
| 31 | 635 | 1350 | 1000 | 1400 | 1070 | 1440 |
| 32 | 735 | 1350 | 1100 | 1400 | 1170 | 1440 |
| 33 | 835 | 1350 | 1200 | 1400 | 1270 | 1440 |
| 34 | 935 | 1350 | 1300 | 1400 | 1370 | 1440 |
| 35 | 1035 | 1350 | 1400 | 1400 | 1470 | 1440 |
| 36 | 1135 | 1350 | 1500 | 1400 | 1570 | 1440 |
| 37 | 635 | 1450 | 1000 | 1500 | 1070 | 1540 |
| 38 | 735 | 1450 | 1100 | 1500 | 1170 | 1540 |
| 39 | 835 | 1450 | 1200 | 1500 | 1270 | 1540 |
| 40 | 935 | 1450 | 1300 | 1500 | 1370 | 1540 |
| 41 | 1035 | 1450 | 1400 | 1500 | 1470 | 1540 |
