Technical information
Pit Required: 70 mm (or 0 mm with ramp)
Machine Room: None (integrated)
Min. Top Floor Height: 2,500 mm
Door Clear Opening Height: 2,100 mm (1,900 mm optional)
Installation Time: 5-7 Days (for 2 Stops)
Location: Indoor
Load Capacity: 400 kg
Speed: 0.15 m/s
Max. Stops: 6 stops
Max. Travel Height: 20,000 mm
Drive System: Screw Drive (EcoSilent 2.0)
Glass: Tempered Laminated Glass (9mm)
Safety Standards: MD 2006/42/EC, EN81-41 (SIL3)
Warranty: 3+5+15 years
Safety Device: Safety Edge, Safety Bar, Phone, and Emergency Button
Power Supply: 1-phase 220V / 3-phase 380V
Motor: PMSM Ultra Silent
Rated Power: 2.9 kW
Main advantages
All-inclusive lift concept
Multiple sizes, shaft finishes, glass options, doors, floors, and interior details allow the lift to integrate with different architectural and interior concepts.
Minimal structural impact
No separate machine room, no counterweight, and no deep pit required, helping reduce major construction work in new and existing buildings.
Fast & easy installation
Prefabricated screw-driven components support efficient on-site assembly, with typical 2-stop installation completed in approximately 5-7 days.
Long-Term Service Confidence
Cibes Lift Thailand provides in-house installation and service by factory-trained engineers, with no third-party subcontractors, nationwide support, genuine parts, and preventive maintenance.

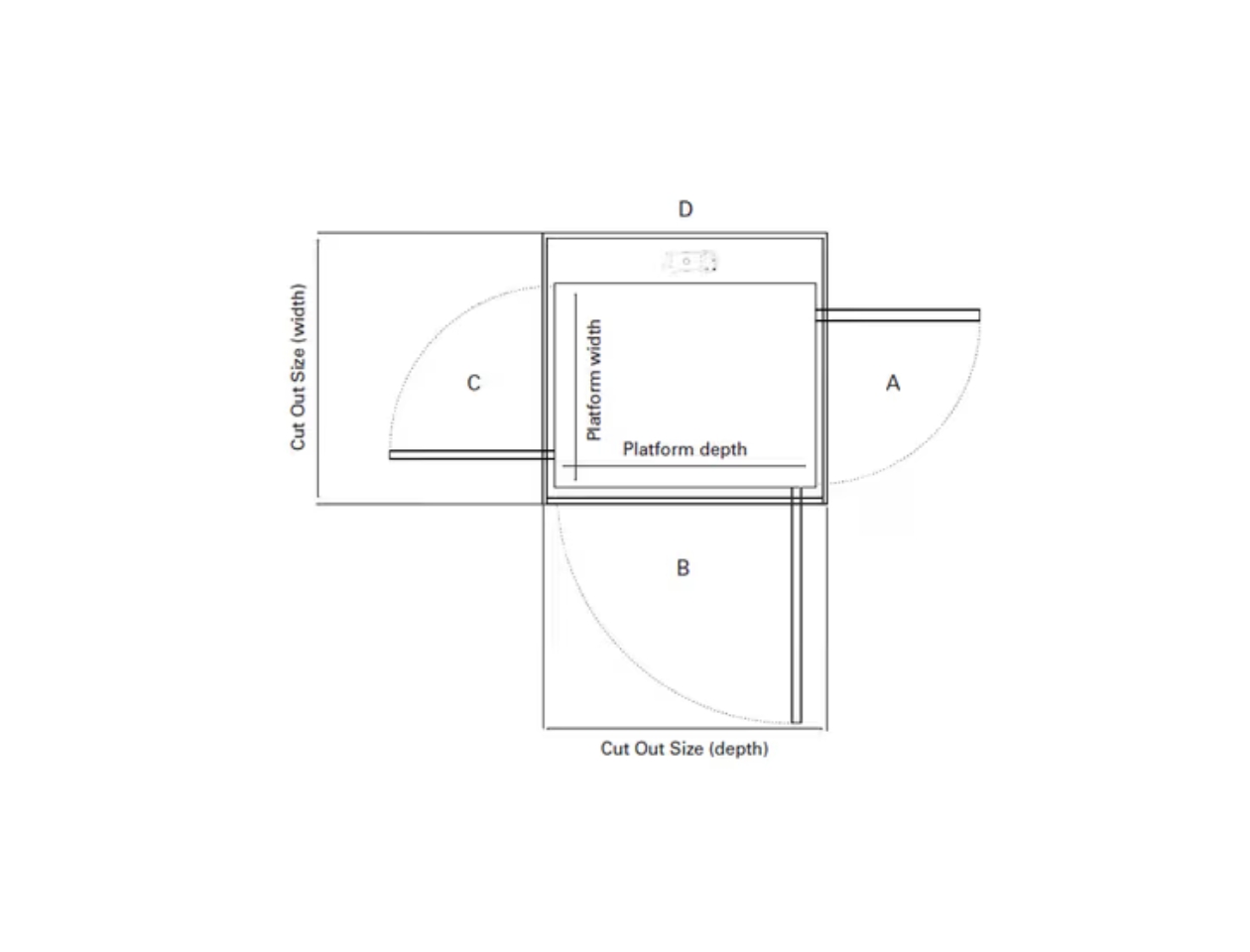

Lift sizes & floor cut out information
Cut out size
The cut out size refers to the minimal dimensions of the pit and the opening through the floors (width x depth, mm) required to install the lift.
